Air Horn Symbol Momentary Small Push Switch | Toyota

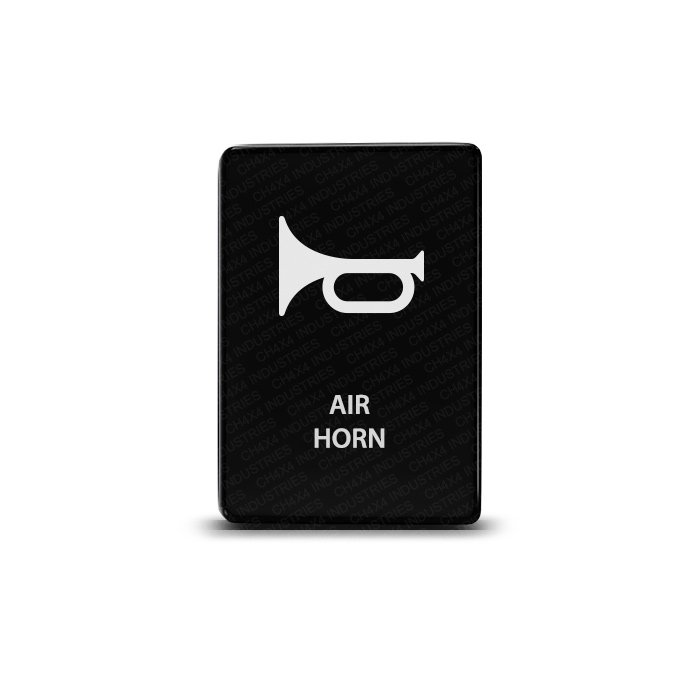

CH4x4 Momentary Small Push Switch for Toyota – Air Horn Symbol

$23.98

Mark your air-horn control with a laser-etched Air Horn Symbol and OEM-style Small Push finish. This momentary SPST ON/OFF button is active only while held. It features a 32.5 × 22 mm face, dual LEDs and a 12V 3A rating. Compatible with listed Toyota panels; fused relay required.

Switch LED Color

Clear

Description
Additional information

The Air Horn Symbol Small Push switch identifies an air-horn control input with a directly laser-etched legend. A matte black hard face and heavy-duty ABS construction provide an OEM-style finish for the listed Toyota applications. The face measures 32.5 × 22 mm, or approximately 1.28 × 0.87 inches.

Air Horn Symbol: momentary ON/OFF

The button operates as a Single Pole Single Throw (SPST) momentary switch. Press and hold for ON, then let go for OFF. It does not latch. This allows each button press to produce an input for the length of time it is held, subject to the behavior of the connected horn equipment.

Lighting and connections

The upper LED is ON when the button is pressed in. A separate lower LED can be connected to the dash-light circuit, keeping its illumination independent of the momentary action. The supplied connector with cable and wiring diagram help identify the connections for the installation.

Choose a suitable horn-control circuit and check its input requirements. The Air Horn Symbol product supplies the labeled switch, not an air horn, compressor or air system. The control circuit and the panel opening both need to match the installation.

Electrical rating and relay requirement

Rated at 3A, 12V, with short-circuit protection. In ALL cases, the accessory MUST be wired through a fused relay. Follow the supplied wiring diagram and the connected equipment instructions.

Included in the package

One momentary Small Push switch, one connector with cable and a supplied wiring diagram.

Compatible with Toyota vehicles

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–ON
Toyota Corolla 2006–2013
Toyota Highlander 2008–ON
Toyota RAV4 2008–2012
Toyota Yaris 2008
Toyota Camry 2011–2014

For entries marked ON, verify the exact model year and panel opening before ordering. Browse the Small Push Series for other labels. Vehicle reference information is available in Toyota owner manuals.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	Momentary
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	Momentary
Controls	Air Horn
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Momentary Small Push Switch for Toyota – Air Horn Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a Momentary switch — it only stays active while you hold it and springs back off, ideal for horns, winches, and anything you only want on for a moment.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
