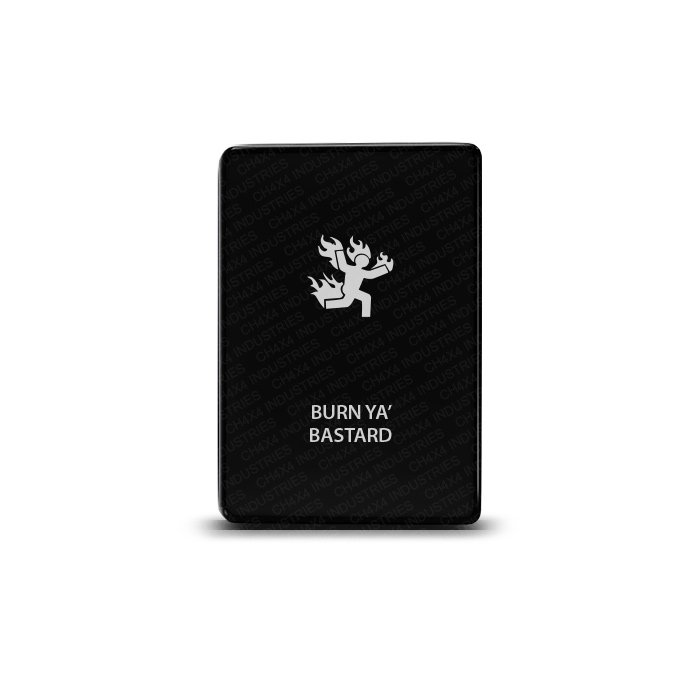

Burn Ya’ Bastard gives this CH4x4 Small Push switch its distinctive legend. The design is for drivers who want a themed accessory label while keeping the compact button format and matte black factory look of their panel.
A themed face with defined switch specifications
The name describes the laser-etched artwork, not a special electrical function. Assign the button to an appropriate accessory circuit and make its purpose clear to anyone using the vehicle. The control itself is a 12V 3A electronic Single Pole Single Throw ON/OFF switch with short circuit protection.
Heavy-duty ABS construction supports a matte black hard face. The Burn Ya’ Bastard legend differentiates the design from the more literal labels in the Small Push Series; select the wording that best identifies your intended panel position.
How the two LEDs connect
The upper LED illuminates when the button is pressed IN. A separate lower LED can connect to the dash-light circuit. Follow the supplied diagram to wire those functions as intended, keeping the button indication and dash illumination connections distinct.
Measure the opening and check fitment
Dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches. This OEM-style switch is compatible with Toyota vehicles in the following application list. Verify the model year and location, including the center-console-only restriction on Tacoma.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Package and relay requirement
One Small Push switch and one connector with cable are included, and a wiring diagram is supplied. The accessory MUST be wired through a fused relay in ALL cases. Match the relay, fuse and load wiring to the actual accessory rather than relying on the button’s rating alone.
Our relay with 5-pin harness is available to review when planning the circuit. Refer to the relevant Toyota owner’s manual for information about original vehicle controls, and use the supplied switch diagram for its connections. Check the finished panel layout before assembly so this themed legend remains easy to distinguish from neighboring switches.
