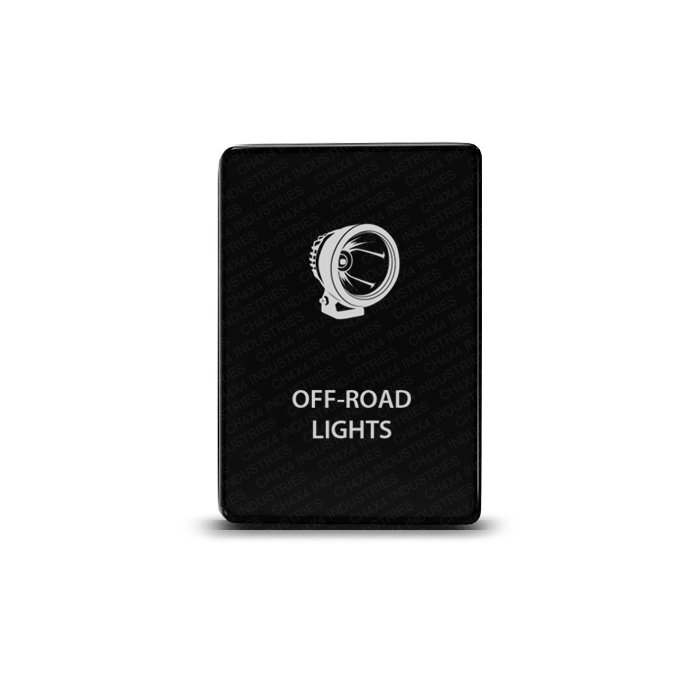

Off-Road Lights Symbol 3 is an alternate artwork choice for your lighting accessory control. The design puts a laser-etched legend on a matte black Small Push face, keeping the button coordinated with a factory-look panel.
Choosing Off-Road Lights Symbol 3
The symbol number identifies this design, not a lighting mode or an increased electrical rating. Compare the product image with the standard Off-Road Lights design before selecting the legend that best suits your panel.
Assign the button to a clearly understood lighting circuit. Its ON/OFF action does not set the lamps’ beam pattern or regulate brightness; those characteristics belong to the connected lighting equipment.
Switch specifications
- 12V 3A electronic control with short circuit protection.
- Single Pole Single Throw ON/OFF operation.
- Heavy-duty ABS construction with a matte black hard face.
- Laser-etched Off-Road Lights Symbol 3 legend.
- Upper LED illuminates when pressed IN.
- Lower LED can connect to a separate dash-light circuit.
32.5 × 22 mm face and vehicle applications
Dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches. Confirm the intended opening for this OEM-style Small Push format, then verify the vehicle and year below. Tacoma fitment is for the center console only.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Relay wiring and supplied components
The accessory MUST be wired through a fused relay in ALL cases. Select the load wiring, fuse and relay around the requirements of the actual lights, and follow the supplied diagram for the switch connections.
One Small Push ON/OFF switch and one connector with cable are included, with a wiring diagram supplied. The upper and lower LEDs have different connection roles, so plan their wiring according to that diagram.
Explore the Small Push Series for other labels when arranging adjacent accessory controls. For information about original vehicle controls and their locations, consult the appropriate Toyota owner’s manual before fitting the Off-Road Lights Symbol 3 button.
