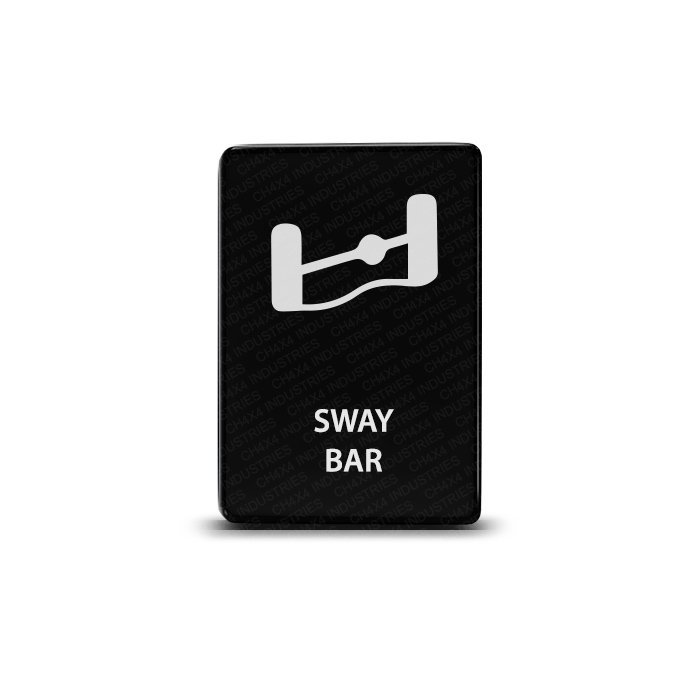

The Sway Bar Symbol Small Push switch offers a marked button for an installation designed around its ON/OFF switching specification. Select this artwork from the product gallery while checking the intended system’s electrical requirements independently.
Choosing the Sway Bar Symbol design
The face is 32.5 × 22 mm, approximately 1.28 × 0.87 inches. A laser-etched legend, matte black hard surface and heavy-duty ABS body create an OEM-style appearance for a factory-look panel.
The marking does not indicate that the product contains a sway bar, actuator or system controller. It also does not establish direct compatibility with original vehicle suspension electronics.
Electrical specification
- Electronic Single Pole Single Throw ON/OFF operation.
- 3A rating at 12V with short circuit protection.
- Accessory MUST be wired through a fused relay in ALL cases.
- Wiring diagram supplied for the switch connections.
Two LEDs for the button
The upper LED is ON when pressed IN. This reports button position rather than mechanical sway-bar status. The lower LED can be wired to a separate dash-light circuit.
Compatible with Toyota mounting applications
Verify the opening and model year. Tacoma fitment is center console only. For entries marked ON, check the exact year and available space. Mounting fit and the connected system’s interface are separate checks.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
What is included?
The package includes one Small Push ON/OFF switch and one connector with cable, with a wiring diagram supplied.
The Sway Bar Symbol item does not include mechanical equipment or a fused relay. Browse the Small Push series for other legends. Consult the relevant Toyota owner’s manual for original control information.
