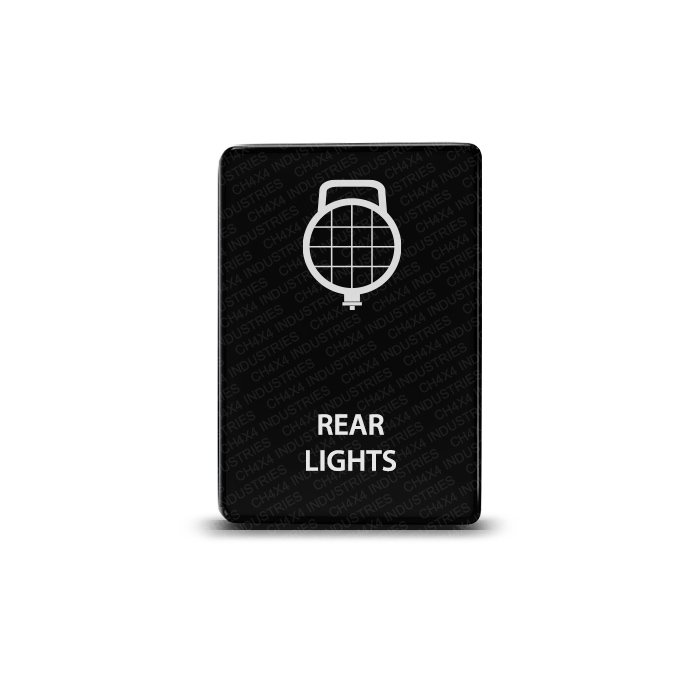

CH4x4 Small Push Switch for Toyota – Rear Lights Symbol

$23.98

Give your rear lights an identifiable ON/OFF control with this Small Push button. Its laser-etched 32.5 × 22 mm face and matte black finish provide a factory look, with separate upper and lower LEDs. Rated 12V 3A; a fused relay is required.

Switch LED Color

Clear

Description
Additional information

The Rear Lights push switch provides a clear panel label for a suitable rear-facing accessory-lighting circuit. A dedicated button helps distinguish that group from front, side or interior lighting controls.

Rear Lights switching and illumination

This electronic Single Pole Single Throw model provides ON/OFF operation at 12V, with a 3A rating and short circuit protection. It does not supply dimming, automatic reversing logic or a lamp-status monitor.

The upper LED is ON when the button is pressed IN. Connect the lower LED to a separate dash-light circuit if desired, following the supplied diagram. The upper light indicates switch position rather than confirmation that the lamps are operating.

Wire through a fused relay

The accessory MUST be wired through a fused relay in ALL cases. Select the relay and load wiring according to the connected lighting equipment’s instructions; the switch is a control component rather than a direct path for the full lamp load.

Face dimensions and finish

The face measures 32.5 × 22 mm, approximately 1.28 × 0.87 inches. A heavy-duty ABS body, matte black hard surface and laser-etched Rear Lights legend create an OEM-style presentation.

Compatible with Toyota applications

Verify the model year and switch opening. Tacoma mounting is center console only. Check the exact year and available space for entries marked ON.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–ON
Toyota Corolla 2006–2013
Toyota Highlander 2008–ON
Toyota RAV4 2008–2012
Toyota Yaris 2008
Toyota Camry 2011–2014

Supplied parts and panel choices

The package includes one Small Push ON/OFF switch and one connector with cable, with a wiring diagram supplied.

Lamps and a fused relay are not listed package contents. Compare the product gallery with other Small Push designs when arranging your panel. The appropriate Toyota owner’s manual describes original vehicle controls.

Weight	2 oz
Dimensions	5 × 5 × 3 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Controls	Rear Light
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Rear Lights Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
