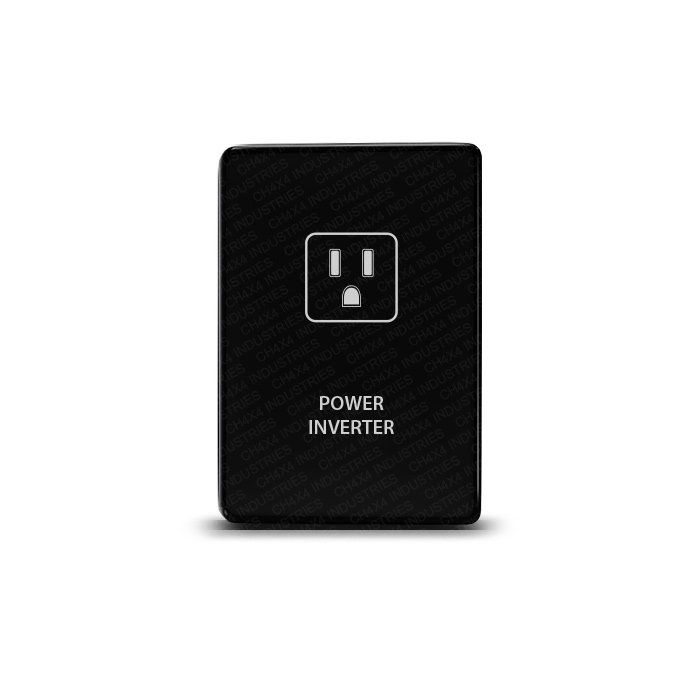

The Power Inverter push switch gives an appropriately designed inverter-control circuit a dedicated label. Its laser-etched legend and matte black finish keep a factory look while distinguishing this button from lighting and other accessory controls.
Power Inverter control, with defined limits
This product is a 12V 3A electronic Single Pole Single Throw ON/OFF switch with short circuit protection. It is not an inverter or a universal remote-control interface. Check the inverter manufacturer’s control requirements before choosing the circuit arrangement.
The accessory MUST be wired through a fused relay in ALL cases. The button’s rating does not describe the inverter’s input-current capacity or AC output. Do not route the inverter’s main load or AC output through this switch; select circuit components to match the equipment’s requirements.
Switch construction and illumination
- Heavy-duty ABS body with a matte black hard face.
- Laser-etched Power Inverter legend.
- Face dimensions: 32.5 × 22 mm, approximately 1.28 × 0.87 inches.
- Upper LED illuminates when the button is pressed IN.
- Lower LED can connect to a separate dash-light circuit.
The upper light indicates switch position rather than confirming inverter output. Follow the supplied diagram for the switch and its two LED connections.
Compatible with Toyota mounting applications
Check the available opening and vehicle year for this OEM-style Small Push format. The fitment list describes the switch’s mounting applications, not compatibility with every inverter’s electronics. Tacoma fitment is for the center console only.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Included parts and planning references
One Small Push ON/OFF switch and one connector with cable are included, with a wiring diagram supplied. Consult the inverter’s instructions when selecting the required relay, fuse and wiring.
The Small Push Series offers other accessory labels for adjacent positions. Use the relevant Toyota owner’s manual to identify original vehicle controls before choosing where the Power Inverter button belongs.
