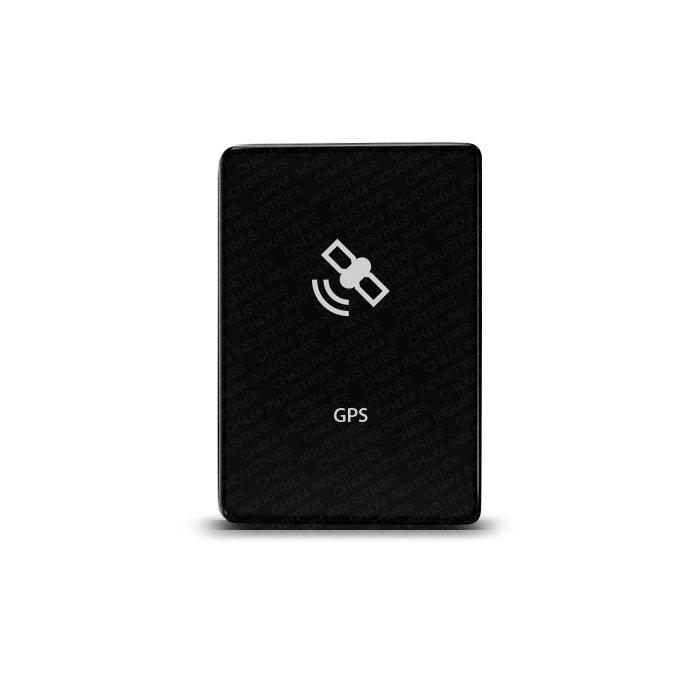

The GPS Symbol push switch offers a navigation-themed legend in the CH4x4 Small Push format. A matte black hard face and laser-etched design give the added control an OEM-style appearance alongside the vehicle’s existing buttons.
Choose the GPS Symbol artwork
This version is identified by its GPS Symbol design. Compare the product image with the GPS Power version if you want wording that explicitly names the power circuit. Choose the label that best explains the assigned function to the person using your panel.
The switch is not a navigation receiver or tracking device. It provides ON/OFF control for a suitably designed accessory circuit; the connected navigation equipment supplies its own functions and determines its power requirements.
Check fit before arranging the panel
Face dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches. Confirm the available opening and vehicle year. This GPS Symbol switch is compatible with Toyota applications listed here, with Tacoma fitment restricted to the center console.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Materials and electrical specifications
- Heavy-duty ABS with a matte black hard face.
- Laser-etched legend.
- 12V 3A electronic switch with short circuit protection.
- Single Pole Single Throw ON/OFF operation.
- Upper LED illuminates when pressed IN.
- Lower LED can connect to a separate dash-light circuit.
The upper light indicates switch position rather than GPS reception. The lower light has its own possible dash-light connection, as shown in the supplied wiring diagram.
Package and installation planning
One Small Push ON/OFF switch and one connector with cable are included; a wiring diagram is supplied. The accessory MUST be wired through a fused relay in ALL cases. Match the relay, fuse and wiring to the accessory circuit, and retain any power adapter required by the connected navigation equipment.
Explore the Small Push Series for other labels when organizing the remaining controls. Consult the appropriate Toyota owner’s manual for original vehicle-control information, and use the switch diagram for its connections.
