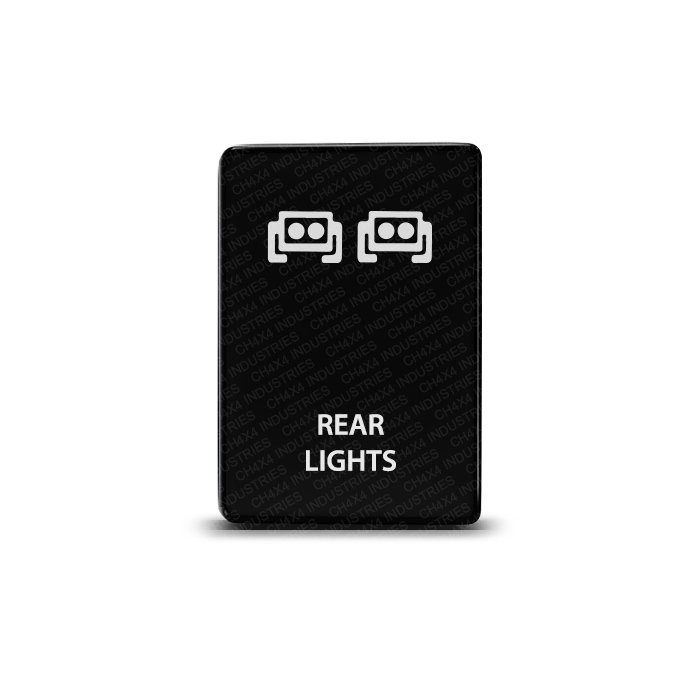

Rear Lights Symbol 2 offers a defined artwork option for a rear-facing accessory-lighting control. The legend helps identify the selected circuit while the Small Push format maintains a factory look in the listed Toyota mounting positions.
Rear Lights Symbol 2 installation sequence
First confirm the vehicle opening and the lighting equipment’s electrical requirements. Then use the supplied diagram to identify the switch and illumination connections. The accessory MUST be wired through a fused relay in ALL cases.
This is an electronic Single Pole Single Throw ON/OFF switch rated at 3A at 12V, with short circuit protection. The graphic does not change that rating or add an automatic reverse connection.
Button lighting
The upper LED turns ON when pressed IN. The lower LED can be wired to a separate dash-light circuit. Neither indicator measures the condition of the connected lamps; the upper light shows switch position.
Construction and dimensions
- Heavy-duty ABS body.
- Matte black hard face with laser-etched Rear Lights Symbol 2 marking.
- 32.5 × 22 mm face, approximately 1.28 × 0.87 inches.
- OEM-style Small Push format.
Compatible with Toyota applications
Tacoma uses the center-console position only. Verify the exact year and opening for all models, particularly entries marked ON.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
Package contents
The package includes one Small Push ON/OFF switch and one connector with cable, with a wiring diagram supplied.
A lamp kit and fused relay are not listed as included. Choose the artwork from this listing’s gallery when comparing nearby Small Push lighting controls. For original vehicle-control information, refer to the applicable Toyota owner’s manual.
