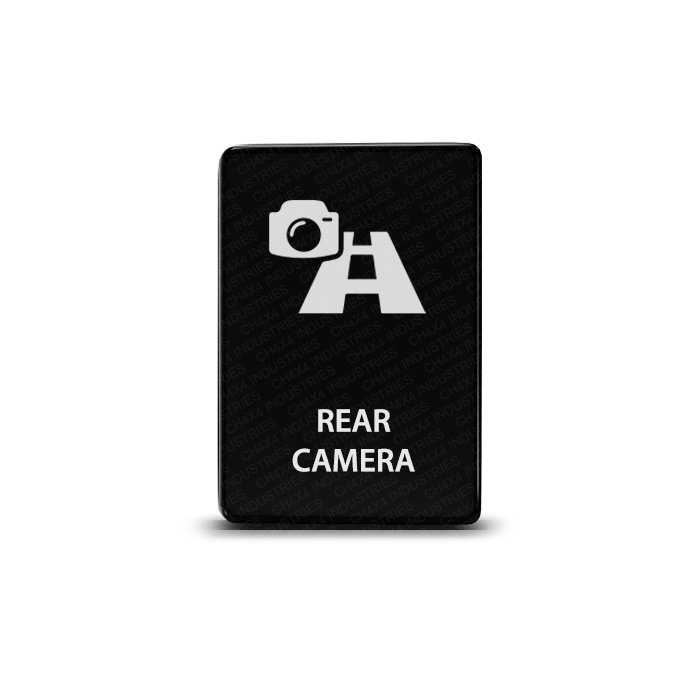

CH4x4 Small Push Switch for Toyota – Rear Camera Symbol 3

$23.98

Organize the camera controls in your panel with the Rear Camera Symbol 3 design. Its laser-etched face measures 32.5 × 22 mm and houses two LEDs; the electronic switch is rated at 3A at 12V, uses ON/OFF action and requires a fused relay for the accessory.

Switch LED Color

Clear

Description
Additional information

Rear Camera Symbol 3 is an alternative legend for a rear-camera control position. The artwork lets you select a button that suits the rest of your panel without changing the published Small Push electrical specifications. Its matte black finish and OEM-style shape maintain a factory look.

Rear Camera Symbol 3: the hardware

A heavy-duty ABS body supports a black hard face with a laser-etched legend. The face dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches. Inside is an electronic Single Pole Single Throw ON/OFF switch rated at 3A at 12V, with short circuit protection.

Two LEDs provide separate illumination functions: the upper light turns on when the switch is pressed IN, while the lower light can be connected to a separate dash-light circuit. Follow the supplied wiring diagram for the switch and LED connections.

Before adding a camera control

Confirm that the camera or display accepts the planned ON/OFF control arrangement.
Check the equipment’s required supply voltage and control-input specifications.
Wire the accessory through a fused relay in ALL cases, selecting the relay, fuse and cable for the circuit.

The Rear Camera Symbol 3 label is not a video interface or a guarantee of factory-camera compatibility. The upper LED shows the switch position rather than verifying the image on a screen.

Compatible with Toyota mounting locations

Use the following vehicle list to check mounting fitment. Tacoma applications are center console only. Confirm the exact vehicle year and opening for the entries shown as ON.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–ON
Toyota Corolla 2006–2013
Toyota Highlander 2008–ON
Toyota RAV4 2008–2012
Toyota Yaris 2008
Toyota Camry 2011–2014

Package contents and artwork choice

One Small Push ON/OFF switch and one connector with cable are included; a wiring diagram is supplied. The package listing does not include a camera or monitor.

Review Rear Camera Symbol 4 when comparing designs. For the original vehicle’s controls and layout, use the appropriate Toyota owner’s manual alongside your camera-system documentation.

Weight	2 oz
Dimensions	5 × 5 × 3 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Rear Camera Symbol 3 is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
