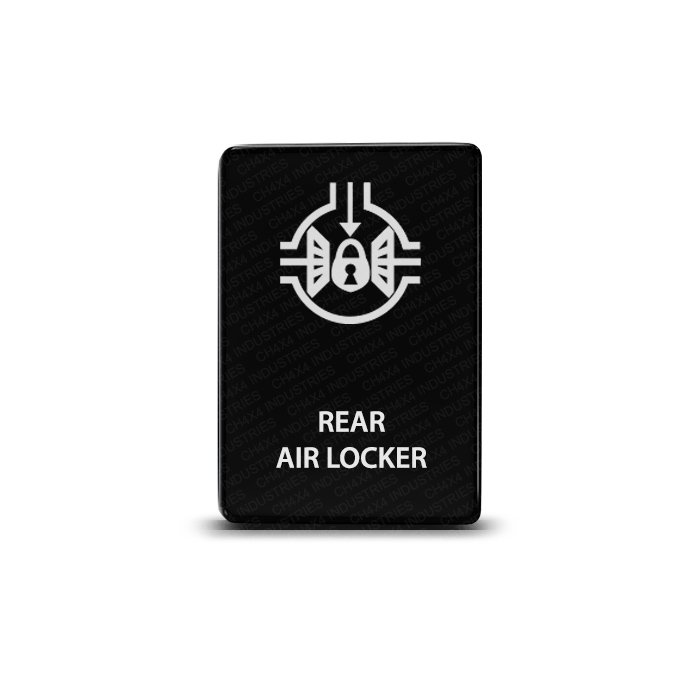

The Rear Air Locker push switch provides a labeled rear-axle control position for a suitable locker installation. Its legend helps distinguish the rear circuit from front-locker and compressor controls without relying on button position alone.
Rear Air Locker: identify the intended circuit
Confirm that the locker system accepts the published switching arrangement before installation. Physical fit in the vehicle does not establish electrical compatibility with a specific solenoid, harness or controller.
Electrical specification
- Electronic Single Pole Single Throw ON/OFF switch.
- Rated at 3A at 12V.
- Short circuit protection.
- Accessory MUST be wired through a fused relay in ALL cases.
Follow the supplied diagram for the switch connections and the locker manufacturer’s requirements for the rest of the system.
What the illuminated button tells you
The upper LED is ON when the switch is pressed IN. It indicates button position, not confirmation that the rear axle is locked. The lower LED can connect to a separate dash-light circuit.
OEM-style construction
The 32.5 × 22 mm face, approximately 1.28 × 0.87 inches, has a laser-etched Rear Air Locker marking and matte black hard surface. A heavy-duty ABS body supports the factory-look format.
Compatible with Toyota mounting locations
Check the year and opening. Tacoma installation is center console only. For entries marked ON, verify the exact year and available space.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
Parts supplied
The package includes one Small Push ON/OFF switch and one connector with cable, with a wiring diagram supplied.
Locker equipment and a fused relay are not listed as included. Compare the Small Push series for other legends. Consult the appropriate Toyota owner’s manual for original vehicle-control information.
