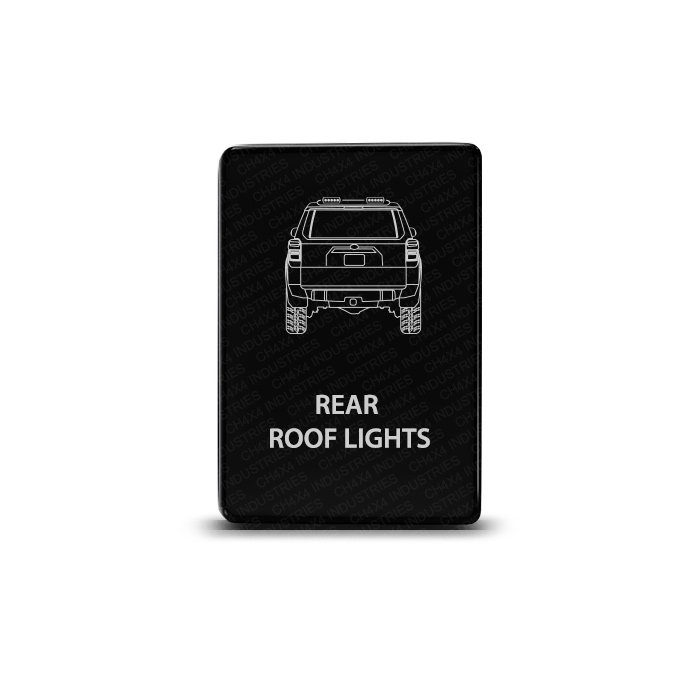

The 4Runner Rear Roof Lights Small Push switch pairs a laser-etched vehicle graphic with a dedicated lighting legend. Distinguish rear roof lighting from lamps installed elsewhere on the vehicle.
4Runner Rear Roof Lights: A rear-roof lighting label
Use the location-specific label when your control panel has separate switches for rear and overhead lighting. Match the wording to the circuit you intend to operate before completing the wiring.
The design is aimed at a 4Runner cabin, while the Small Push body maintains compatibility with the entire Toyota list here.
Its matte black ABS face provides an OEM-style finish and factory look. Press once for ON and again for OFF. Before installation, compare the available panel opening with the 32.5 × 22 mm face and follow the supplied wiring diagram.
Compatible with Toyota vehicles
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
For applications marked ON, verify the exact year and panel opening. See the Small Push Series for other designs and Toyota owner manuals for vehicle reference information.
4Runner Rear Roof Lights switch specifications
- Single Pole Single Throw (SPST), latching ON/OFF: press for ON, press again for OFF.
- Electronic switch rated at 3A, 12V, with short-circuit protection.
- 32.5 × 22 mm face, approximately 1.28 × 0.87 inches.
- Heavy-duty ABS plastic with a matte black hard surface.
- Laser-etched graphic and legend.
- Upper LED is ON when the switch is pressed in.
- Lower LED can be connected to a separate dash-light circuit.
In ALL cases, the accessory MUST be wired through a fused relay. Follow the supplied diagram and the accessory wiring requirements.
Included hardware
One Small Push ON/OFF switch, one connector with cable and a supplied wiring diagram.
