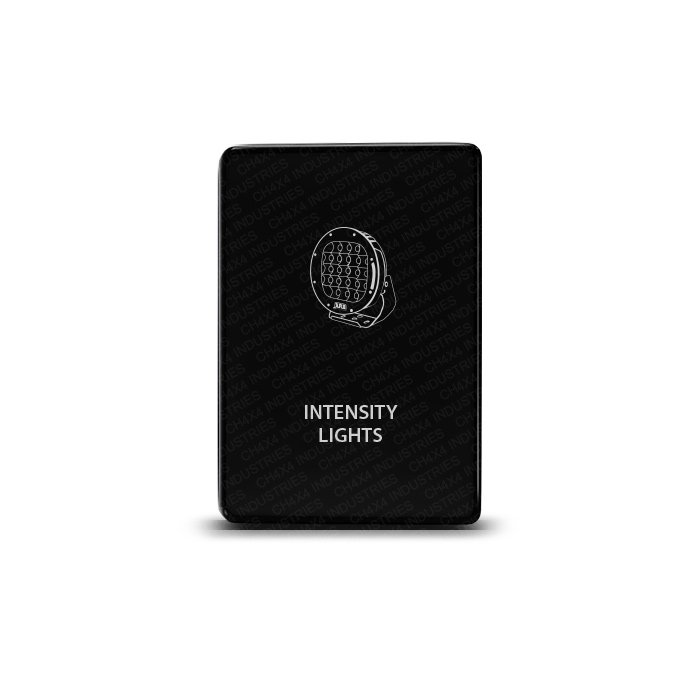

Intensity Lights names the legend on this CH4x4 Small Push switch. It gives a lighting accessory circuit its own label on a matte black face, keeping the added button consistent with a factory-look panel.
Intensity Lights uses ON/OFF switching
The specified action is Single Pole Single Throw ON/OFF. Despite the wording on the legend, this button does not adjust brightness or act as a dimmer. The connected lights and any separate lighting controller determine the available lighting functions.
Choose this design when the label suits the circuit you intend to control. For a different lighting label, compare the Flood Lights switch or the other designs in the Small Push Series.
Electrical specifications and illumination
- 12V 3A electronic switch with short circuit protection.
- Upper LED illuminates when the button is pressed IN.
- Lower LED can connect to a separate dash-light circuit.
- Heavy-duty ABS construction with a matte black hard face.
- Laser-etched Intensity Lights legend.
Check the Small Push format
Face dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches. Compare the intended mounting opening with this size and verify the vehicle year. This OEM-style switch is compatible with Toyota applications listed below.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
The Tacoma listing applies to the center console only. Keep that location restriction when planning a row of lighting controls.
Wiring and package contents
The accessory MUST be wired through a fused relay in ALL cases. Follow the supplied wiring diagram for the switch and select the relay, fuse and load wiring to suit the actual lighting circuit. The button’s rating is not the permitted load of the lamps.
The package contains one Small Push ON/OFF switch and one connector with cable; a wiring diagram is supplied. Plan the upper indication and lower dash-light connection separately according to that diagram.
The appropriate Toyota owner’s manual provides information about original vehicle controls. Review those locations before assigning the Intensity Lights button to your added accessory circuit.
