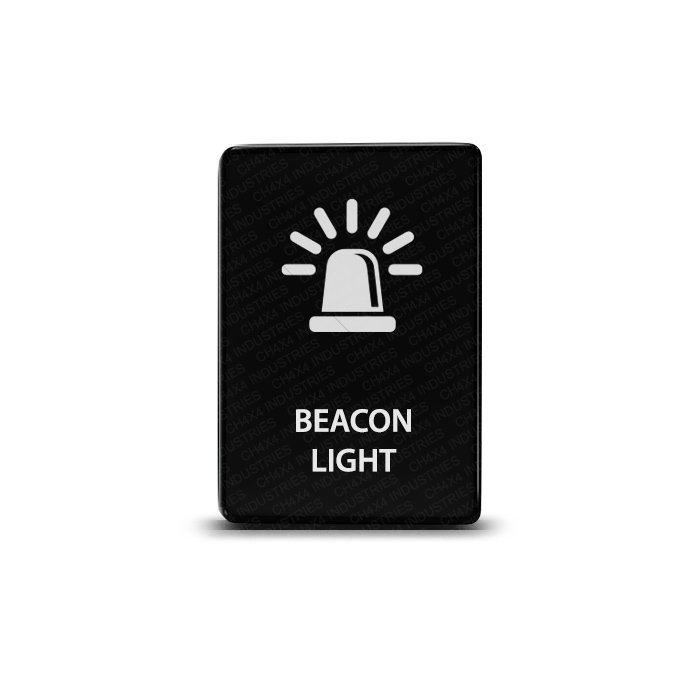

Put the Beacon Light control in a clearly identified place on your panel. This CH4x4 switch uses a laser-etched beacon legend on a matte black hard face, providing an OEM-style finish for the Toyota applications listed below. The compact Small Push format helps keep the accessory label consistent with the surrounding controls.
Beacon Light circuit planning
The button provides Single Pole Single Throw ON/OFF operation. It does not select flash patterns or add functions to the connected beacon; those depend on the accessory itself. Plan the switch as the control for a properly designed relay circuit.
The accessory MUST be wired through a fused relay in ALL cases. Review the relay and 5-pin harness specifications when choosing installation parts, and size the wiring and fuse for the actual load. Follow the wiring diagram supplied with the switch.
Construction, size and illumination
The electronic switch is rated at 12V 3A and includes short circuit protection. Its heavy-duty ABS construction has a matte black finish, and the legend is laser etched. Dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches.
There are two LEDs: the upper LED illuminates when the switch is pressed IN, and the lower LED can connect to a separate dash-light circuit. These connections let you plan the button indication and dash illumination separately.
Vehicle applications to check
This Beacon Light switch is compatible with Toyota models in the following list. Match your model year and intended opening; Tacoma fitment is for the center console only.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
For listings marked ON, confirm your exact model year and switch opening before ordering.
Included with the switch
You receive one Small Push switch and one connector with cable, with a wiring diagram supplied. Confirm the mounting position before assembly so the legend remains easy to identify among your other accessory controls.
For other labels in the same format, browse the Small Push Series. Information on original vehicle controls is available in the appropriate Toyota owner’s manual; consult that reference separately from the switch’s installation diagram.
