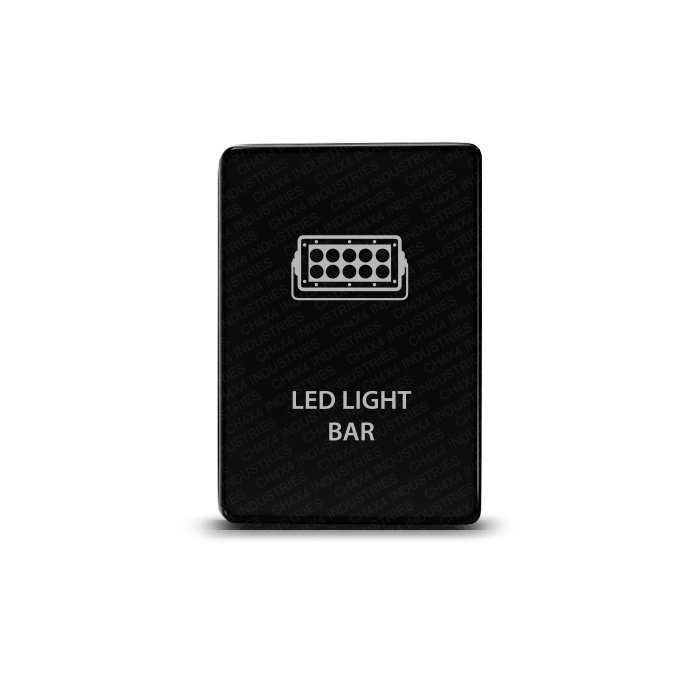

The LED Light Bar push switch gives your light-bar circuit a dedicated place among the vehicle’s accessory controls. A laser-etched legend identifies the assigned circuit, while the matte black face maintains an OEM-style appearance in the listed Toyota applications.
Choose a recognizable LED Light Bar control
This is the standard named symbol design in this listing. Compare the Symbol 2 version using the product images if you prefer a different legend design. The artwork choice does not specify a light bar’s size, beam pattern or power consumption.
Before fitting the switch, decide which panel position will control the bar and check the opening. Face dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches. Use the listed size and vehicle application together when choosing this Small Push format.
Control specifications
- Electronic 12V 3A switch with short circuit protection.
- Single Pole Single Throw ON/OFF operation.
- Heavy-duty ABS construction and matte black hard face.
- Laser-etched LED Light Bar legend.
- Upper LED illuminates when the switch is pressed IN.
- Lower LED can connect to a separate dash-light circuit.
Compatible with Toyota models below
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Tacoma fitment is limited to the center console. Confirm the intended position rather than assuming all blanks within the vehicle are interchangeable.
Wire the accessory through a relay
The accessory MUST be wired through a fused relay in ALL cases. Select the relay, fuse and load wiring for the actual light bar, and follow the supplied switch diagram. The switch’s 3A rating does not remove the relay requirement.
One Small Push ON/OFF switch and one connector with cable are included, with a wiring diagram supplied. Review the relay and 5-pin harness specifications when choosing the required parts.
For original vehicle-control information, consult the relevant Toyota owner’s manual. Plan a clearly labeled panel so this LED Light Bar button can be distinguished from your other lighting circuits.
