CH4x4 Momentary Small Push Switch for Toyota – Garage Opener Symbol

$23.98

Add a labeled button to a compatible garage-control installation with the Garage Opener Symbol Small Push switch. Momentary SPST ON/OFF operation means ON while pressed, OFF on release. The 32.5 × 22 mm face, dual LEDs and matte black finish suit listed Toyota panels. Rated 12V 3A; fused relay required.

Switch LED Color

Clear

Description
Additional information

The Garage Opener Symbol Small Push switch gives a garage-control input its own place in the cabin. Its OEM-style proportions and matte black finish help the added button sit neatly beside existing controls. Use it with a suitable control circuit in one of the listed Toyota applications.

A momentary Garage Opener Symbol button

Pressing and holding closes the SPST ON/OFF switch; releasing returns it to OFF. The button does not latch. Check the requirements of the garage equipment and its interface before installation: this product is a wired switch, and the supplied kit does not include a garage remote or transmitter.

Panel dimensions and lighting

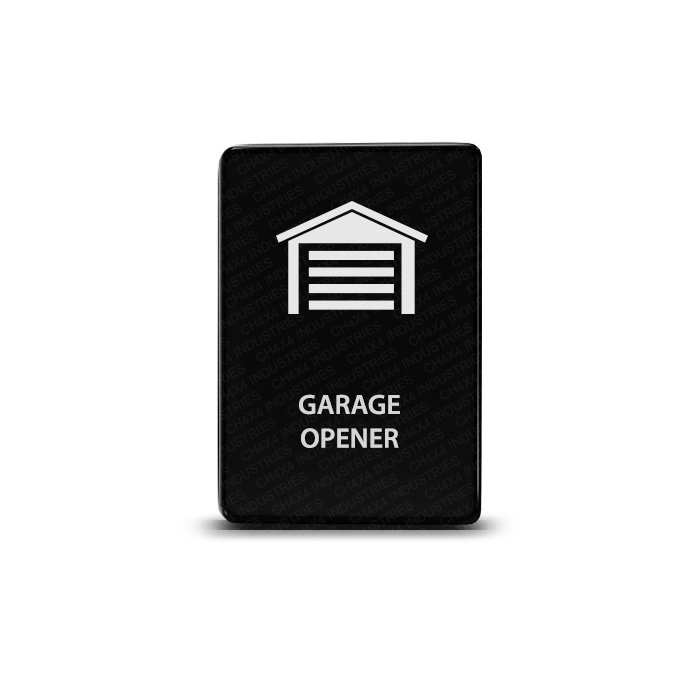

The face measures 32.5 × 22 mm (approximately 1.28 × 0.87 inches). Heavy-duty ABS plastic, a black hard surface and a directly laser-etched legend provide the factory look. The upper LED is ON while the switch is pressed in. The lower LED can be wired separately to the dashboard illumination circuit.

Garage Opener Symbol panel fit and garage-system compatibility are separate checks. Match the opening dimensions, then confirm the required input with the equipment instructions.

Electrical rating and relay requirement

Rated at 3A, 12V, with short-circuit protection. In ALL cases, the accessory MUST be wired through a fused relay. Follow the supplied wiring diagram and the connected equipment instructions.

Included in the package

One momentary Small Push switch, one connector with cable and a supplied wiring diagram.

Compatible with Toyota vehicles

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–ON
Toyota Corolla 2006–2013
Toyota Highlander 2008–ON
Toyota RAV4 2008–2012
Toyota Yaris 2008
Toyota Camry 2011–2014

For entries marked ON, verify the exact model year and panel opening before ordering. Browse the Small Push Series for other labels. Vehicle reference information is available in Toyota owner manuals.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	Momentary
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	Momentary
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Momentary Small Push Switch for Toyota – Garage Opener Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a Momentary switch — it only stays active while you hold it and springs back off, ideal for horns, winches, and anything you only want on for a moment.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
