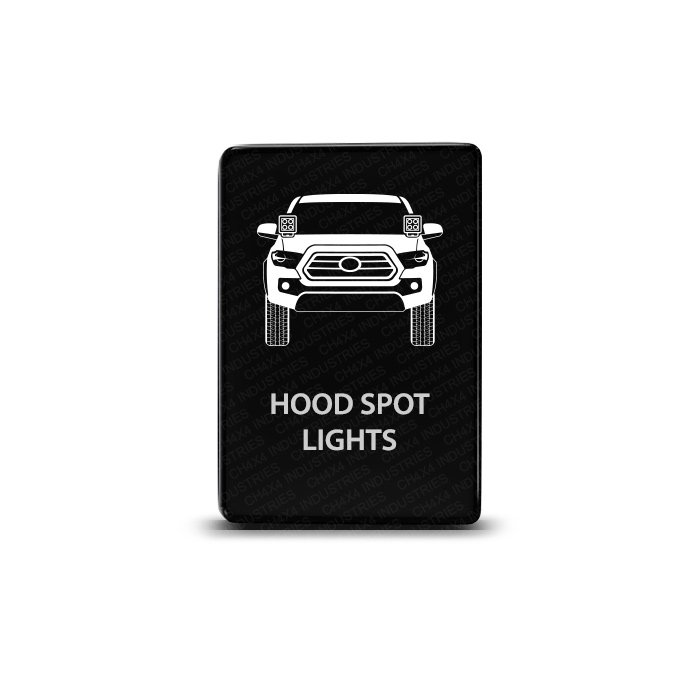

The Tacoma Hood Spot Lights Small Push switch gives spot lighting its own marked control. The laser-etched Tacoma artwork is especially suited to a Tacoma cabin, where a matching vehicle graphic can help organize a row of accessory buttons.
Tacoma Hood Spot Lights control and fit
The Tacoma image changes the design of the face, not the switch format. This version is compatible with Toyota vehicles in the complete list below. It uses the same dimensions and electrical rating as the other Small Push ON/OFF models.
A Tacoma Hood Spot Lights label helps distinguish this circuit from bumper or roof lighting. Verify that the intended panel position accepts the Small Push face and that the lighting circuit follows the relay requirements. The button is supplied with a cable connector and diagram; spot lamps and their mounts are not part of the listed kit.
Its latching action maintains the selected state between presses, so continuous pressure is not required to keep the switch ON.
Switch specifications
- Single Pole Single Throw (SPST), latching ON/OFF: press for ON, press again for OFF.
- Electronic switch rated at 3A, 12V, with short-circuit protection.
- 32.5 × 22 mm face, approximately 1.28 × 0.87 inches.
- Heavy-duty ABS plastic with a matte black hard surface.
- Laser-etched graphic and legend.
- Upper LED is ON when the switch is pressed in.
- Lower LED can be connected to a separate dash-light circuit.
In ALL cases, the accessory MUST be wired through a fused relay. Follow the supplied diagram and the accessory wiring requirements.
Included hardware
One Small Push ON/OFF switch, one connector with cable and a supplied wiring diagram.
Compatible with Toyota vehicles
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
For applications marked ON, verify the exact year and panel opening. See the Small Push Series for other designs and Toyota owner manuals for vehicle reference information.
