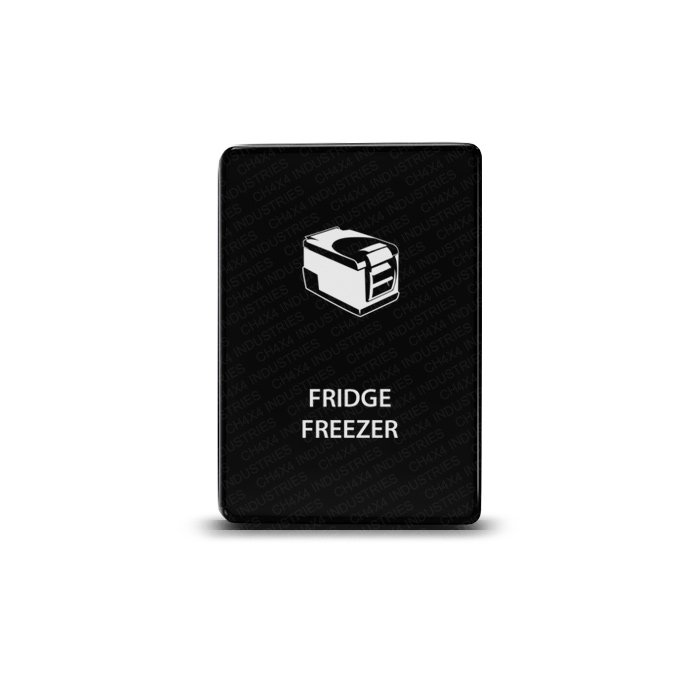

Fridge Freezer Symbol 2 labels the accessory circuit for your refrigeration setup. This CH4x4 Small Push switch offers an OEM-style matte black face, keeping the control visually coordinated with the vehicle’s panel while giving it a specific, laser-etched legend.
Fridge Freezer control with a defined purpose
The switch supplies ON/OFF control for a relay circuit. It is not a thermostat, a temperature selector or an appliance battery-protection module. The connected fridge or freezer retains its own operating controls and electrical requirements.
Symbol 2 identifies this artwork selection. Review the product image when choosing the legend, and check how the button will be labeled alongside your other accessory circuits.
What comes with the switch
The package contains one Small Push ON/OFF switch and one connector with cable. A wiring diagram is supplied to show the switch connections. The accessory MUST be wired through a fused relay in ALL cases; select the relay, fuse and load wiring for the connected appliance.
Technical details
- 12V 3A electronic switch with short circuit protection.
- Single Pole Single Throw ON/OFF action.
- Heavy-duty ABS and a matte black hard face.
- Laser-etched Fridge Freezer legend.
- Upper LED illuminates when pressed IN.
- Lower LED can connect to a separate dash-light circuit.
- Face size: 32.5 × 22 mm, approximately 1.28 × 0.87 inches.
Compatible with Toyota models below
Compare the intended opening with the Small Push face size, then verify the vehicle year. Tacoma fitment is limited to the center console.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Plan a readable accessory panel
Check which circuits need separate labels before completing the layout. The Small Push Series offers other accessory legends in this family, and the relay with 5-pin harness listing provides specifications to review for the installation.
Consult the appropriate Toyota owner’s manual for original vehicle controls. Use the supplied switch diagram and the appliance’s instructions when planning the Fridge Freezer circuit and its power connection.
