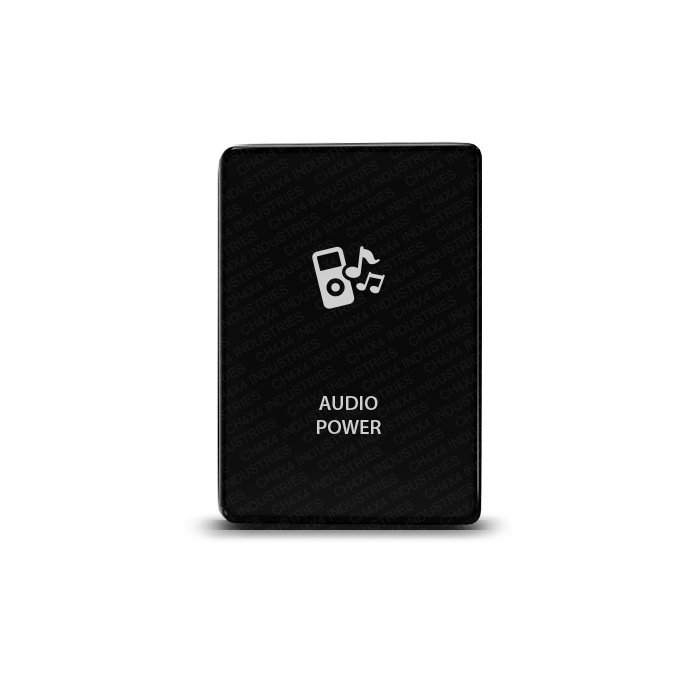

CH4x4 Small Push Switch for Toyota – Audio Power Symbol

$23.98

Identify your audio accessory control with the CH4X4 Audio Power Symbol Small Push switch. A laser-etched face and matte black finish keep the control panel consistent with an OEM-style interior.

SPST ON/OFF, upper and lower LEDs, 3A at 12V. Wire the accessory through a fused relay. Supplied with a connector, cable and wiring diagram.

Switch LED Color

Clear

Description
Additional information

The Audio Power Symbol Small Push switch provides a clearly labeled ON/OFF control for an audio accessory circuit. Its compact CH4X4 housing is compatible with Toyota switch locations in the list below, giving the installation a factory look without a generic, unmarked control.

Audio Power Symbol for a clear panel layout

When audio equipment shares a panel with lights or other accessories, a dedicated legend helps identify the intended circuit. This listing features the standard audio graphic. For the alternative artwork, compare Audio Power Symbol 2 before choosing the design.

The label identifies a control; the switch is not an audio source, amplifier or volume control. Match the electrical connections to the requirements of your equipment and the supplied switch diagram.

Electrical specifications first

Electronic Single Pole Single Throw ON/OFF switch.
Rated at 3A and 12V, with short circuit protection.
Upper LED turns on when the switch is pressed IN.
Lower LED can be wired to a separate dash lighting circuit.

The accessory must be wired through a fused relay in all cases. Do not interpret the audio legend as a higher power rating. Review the relay with 5-pin harness listing when planning your accessory wiring.

Finish, fit and supplied parts

The heavy-duty ABS housing has a hard matte black face with the symbol laser etched into it. Face dimensions are 32.5 × 22 mm (approximately 1.28 × 0.87 in). The OEM-style format is intended for the existing switch opening in the listed applications.

The kit includes one ON/OFF Small Push switch and one connector with cable. A wiring diagram is supplied with the switch.

Compatible Toyota applications

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–2014
Toyota Corolla 2006–2013
Toyota Camry 2011–2014

Check the model year and location together. The Tacoma entry is center console only. See the Small Push range for matching control formats with other legends.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Audio Power Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
