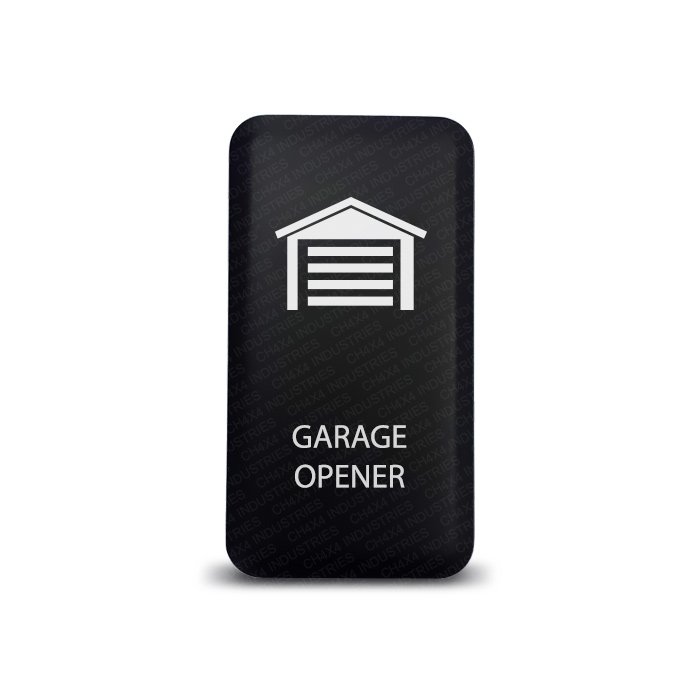

Add a dedicated Garage Opener Symbol to your dashboard with this CH4X4 momentary push switch for Toyota garage opener control. Its laser-etched label and matte black Large Push face create an OEM-style control position for a separately installed, compatible opener interface.
Garage Opener Symbol: a labeled button for your interface
The switch provides momentary SPST ON/OFF action: the circuit is ON while you hold the button and OFF when you release it. This listing is for the switch and its connector, not a garage-door transmitter, receiver or programming module. Have your installer confirm that the opener interface can accept the switch’s control arrangement before connecting it.
Momentary push switch for Toyota garage opener: Large Push specifications
- Face dimensions: 39 × 21 mm (approximately 1.54 × 0.83 inches). Verify the mounting opening separately.
- Single Pole Single Throw (SPST), momentary ON/OFF operation: press and hold for ON; release for OFF.
- Electronic switch rated at 3A at 12V, with short circuit protection.
- Heavy-duty ABS body with a matte black hard surface.
- Garage Opener Symbol legend laser etched directly into the face.
- Two LEDs per switch: one upper indicator and one lower panel light.
- Upper LED turns ON when the switch is pressed IN.
- Lower LED can be wired to a separate dash-light circuit.
Package contents
- 1 CH4X4 Large Push momentary switch — Garage Opener Symbol.
- 1 connector with cable.
- Wiring diagram supplied with the switch.
Relay and controlled equipment sold separately.
Wiring and installation — fused relay required
A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch. Route accessory power through a suitably rated relay circuit with appropriate fuse protection.
Follow the supplied wiring diagram and the accessory manufacturer’s instructions. The connector and cable provide the switch-side connection. The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately. Have your installer confirm relay, wiring and fuse selection for the accessory load.
Planning your Garage Opener Symbol installation
Vehicle fitment describes the mounting application. It does not establish compatibility with a particular garage opener or remote system. Check the actual dash opening and the opener interface documentation as separate steps. The supplied wiring diagram covers the switch; the controlled system’s instructions determine how the two are integrated.
Compatible with Toyota mounting applications
Check the vehicle year, trim, market and actual dash opening. Observe the mounting-position restrictions below. This CH4X4 aftermarket switch is designed for the listed Toyota applications.
- Toyota Tacoma 2005–2011
- Toyota Tacoma 2012–2015 (left side ONLY)
- Toyota Tacoma 2016–2020 (left side ONLY)
- Toyota FJ Cruiser 2007–2014
- Toyota Fortuner 2005–2014
- Toyota Hilux 2005–2014
- Toyota Highlander 2001–2007
- Toyota Tundra 2005–2006 (center console, if equipped)
- Toyota 4Runner 2003–2009
- Toyota Prado 120 Series 2003–2009
- Toyota Land Cruiser 100 Series 1998–2007
- Toyota Land Cruiser 75, 76, 78 and 79 Series
