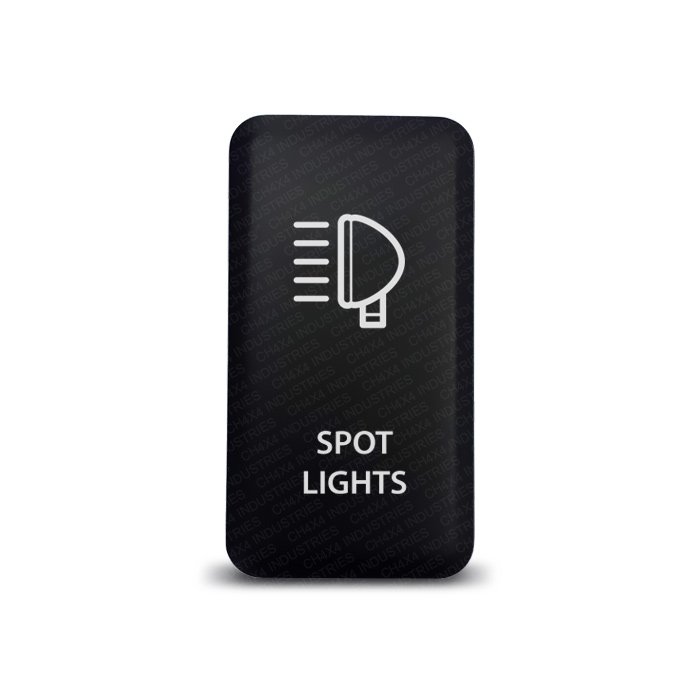

Keep a spot-light control separate from fog and rear lighting with this CH4X4 Toyota spot light push switch. The face shows one lamp in profile with horizontal light rays above the SPOT LIGHTS wording.
Spot Lights Symbol: design and use
Select the single-lamp illustration when it matches the style of your existing labels. It does not limit the installation to one lamp or define the beam pattern of your equipment. The switch supplies one latching control circuit; your lamps’ combined current draw determines the required fused relay and accessory power wiring.
Toyota spot light push switch: Large Push specifications
- Face size: 39 × 21 mm (approximately 1.54 × 0.83 inches). This is the face measurement; verify the mounting opening separately.
- Single Pole Single Throw (SPST), maintained ON/OFF operation: press in to switch ON and press again to switch OFF.
- Electronic switch rated at 3A at 12V, with short circuit protection. A fused relay remains mandatory.
- Heavy-duty ABS construction with a matte black hard surface and an OEM-style factory look.
- Spot Lights Symbol laser etched directly into the switch face.
- Two LEDs: one upper indicator and one lower panel light.
- The upper LED turns ON when the switch is pressed IN.
- The lower LED can be wired to a separate dash-light circuit.
Wiring and installation — fused relay required
A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch. Route accessory power through a suitably rated relay circuit with appropriate fuse protection.
Follow the supplied wiring diagram and the accessory manufacturer’s instructions. The connector and cable provide the switch-side connection, not a complete accessory power harness. The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately. Have your installer confirm relay, wiring and fuse selection for the connected equipment.
What is included
- 1 CH4X4 Large Push ON/OFF switch — Spot Lights Symbol.
- 1 connector with cable.
- Wiring diagram.
Product SKU: CH4X4-TOY-SPOL. The relay and accessory being controlled are sold separately.
Compatible with Toyota mounting applications
Check the model year, trim, market and actual dash opening before ordering. Observe the mounting-position restrictions below. This is a CH4X4 aftermarket switch for Toyota applications, not a Toyota-manufactured part.
- Toyota Tacoma 2005–2011
- Toyota Tacoma 2012–2015 (left side ONLY)
- Toyota Tacoma 2016–2020 (left side ONLY)
- Toyota FJ Cruiser 2007–2014
- Toyota Fortuner 2005–2014
- Toyota Hilux 2005–2014
- Toyota Highlander 2001–2007
- Toyota Tundra 2005–2006 (center console, if equipped)
- Toyota 4Runner 2003–2009
- Toyota Prado 120 Series 2003–2009
- Toyota Land Cruiser 100 Series 1998–2007
- Toyota Land Cruiser 75, 76, 78 and 79 Series
