CH4x4 Small Push Switch for Toyota – Winch Power Symbol

$23.98

Label a suitable winch power-control circuit with a dedicated ON/OFF button. The Winch Power Small Push switch has a 32.5 × 22 mm matte black face, laser-etched legend and dual LEDs. Rated 12V 3A; use a fused relay and verify the winch control requirements.

Switch LED Color

Clear

Description
Additional information

The Winch Power push switch marks a dedicated power-control position in your accessory panel. Use it only with an installation designed to accept this switch’s ON/OFF electrical arrangement, after checking the winch or controller manufacturer’s requirements.

Winch Power is an ON/OFF control

This model is an electronic Single Pole Single Throw switch rated at 3A at 12V, with short circuit protection. It is not an IN/OUT directional control and does not replace the winch’s operating controller.

The accessory MUST be wired through a fused relay in ALL cases. Winch motor current must not pass through the Small Push switch. Plan the control circuit with the connected equipment’s instructions rather than treating the 3A rating as a motor-load rating.

Panel indicators

Pressing the button IN turns on the upper LED. The lower LED can be wired to a separate dash-light circuit using the supplied diagram. The upper light indicates the button position; it does not confirm winch movement or the condition of the winch system.

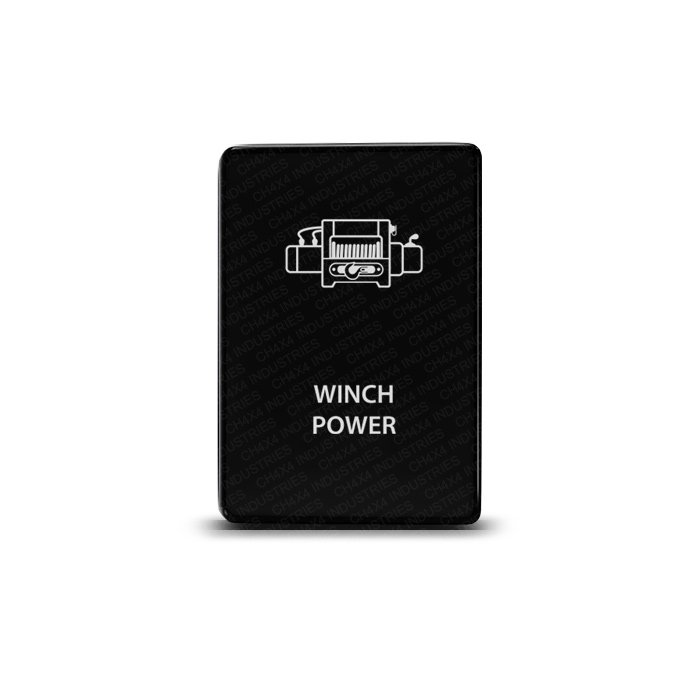

A factory look in the correct opening

The OEM-style face measures 32.5 × 22 mm, approximately 1.28 × 0.87 inches. A heavy-duty ABS body, matte black hard surface and laser-etched Winch Power marking keep the button visually consistent with a compact accessory panel.

Compatible with Toyota applications

Verify the model year and mounting space against this list. The Tacoma application is for the center console only.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–2014
Toyota Corolla 2006–2013
Toyota Camry 2011–2014

Included parts and installation references

The package supplies one Small Push ON/OFF switch and one connector with cable. A wiring diagram is included. A winch, its operating controller and a fused relay are not listed package contents.

Compare other Small Push controls for your panel layout. Refer to the relevant Toyota owner’s manual when identifying original vehicle controls.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Controls	Winch
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Winch Power Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
