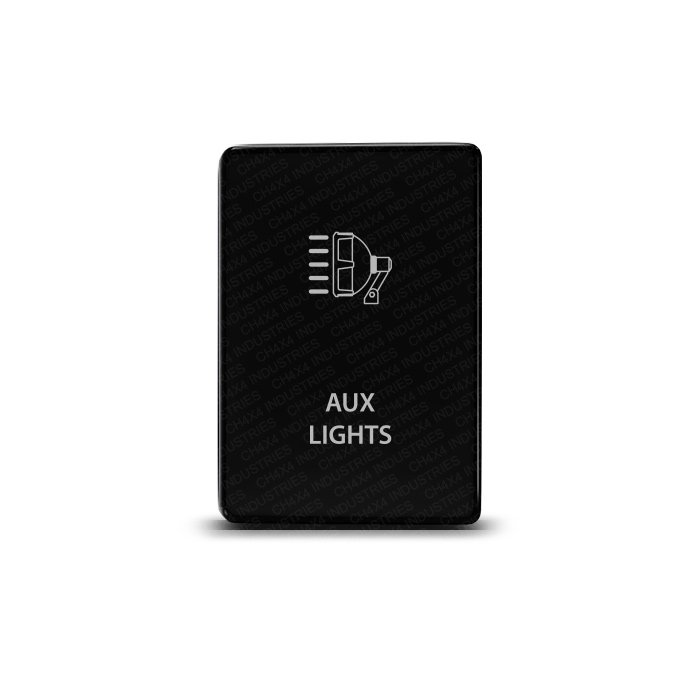

Auxiliary Lights deserve a clearly labeled control when you add lighting to your vehicle. This CH4x4 Small Push switch provides an OEM-style button for a relay-controlled circuit, with a matte black finish that blends into a factory-look panel. The legend distinguishes your added lights from neighboring accessory switches.
Build a more readable lighting panel
The Auxiliary Lights wording is laser etched into a heavy-duty ABS hard face. It identifies the circuit you assign to the button without committing the label to a particular lamp shape or mounting location. For a row of accessory controls, compare the Small Push Series and choose legends that describe each circuit clearly.
Lighting and electrical details
- Electronic switch rated at 12V 3A, with short circuit protection.
- Single Pole Single Throw ON/OFF action.
- One upper LED illuminates when the switch is pressed IN.
- One lower LED can connect to a separate dash-light circuit.
- 32.5 × 22 mm dimensions, approximately 1.28 × 0.87 inches.
The two LEDs serve different connections: the upper light follows the pressed-in position, while the lower light can illuminate with the chosen dash-light circuit. Follow the supplied diagram when wiring these functions.
Check the vehicle and opening
This Auxiliary Lights switch is compatible with Toyota models and years listed here. Confirm the intended mounting position before ordering, especially the center-console restriction for Tacoma.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
What you need for installation
One Small Push switch and one connector with cable are included, with a wiring diagram supplied. The accessory MUST be wired through a fused relay in ALL cases; the 3A switch rating is not a reason to connect the lighting load directly to the button.
Plan the load wiring, fuse and relay around the actual lights being installed. Our 5-pin relay and harness listing provides an option to review for your circuit. For information about existing vehicle controls, use the relevant Toyota owner’s manual alongside the supplied switch diagram.
