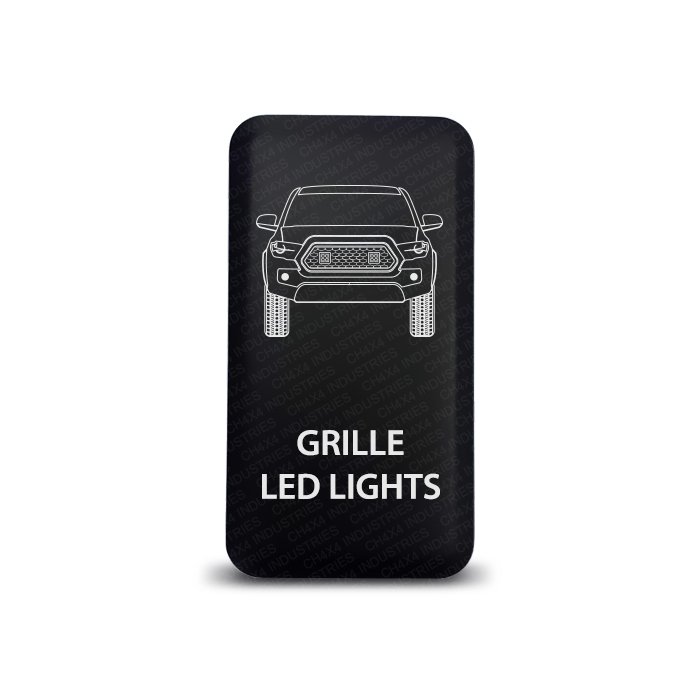

Give grille-mounted LEDs a control label separate from a grille light bar. The CH4X4 push switch for Toyota Tacoma 3rd Gen grille led lights uses a laser-etched Grille LED Lights Symbol face with Tacoma 3rd Gen artwork and an OEM-style matte black finish.
Grille LED Lights Symbol: choosing this control
Grille LED Lights Symbol identifies that accessory category in a Tacoma 3rd Gen-themed layout. The label does not determine how many LEDs are fitted or their color. This switch supplies manual ON/OFF control through a fused relay; any additional lighting functions must come from the separate equipment.
Push switch for Toyota Tacoma 3rd Gen grille led lights: specifications
- Face size: 39 × 21 mm (approximately 1.54 × 0.83 inches). Verify the actual mounting opening separately.
- Single Pole Single Throw (SPST), latching ON/OFF operation: press once for ON and again for OFF.
- Electronic switch rated at 3A at 12V, with short circuit protection.
- Heavy-duty ABS construction with a matte black hard surface.
- Grille LED Lights Symbol and Tacoma 3rd Gen artwork laser etched directly into the face.
- Two LEDs: one upper indicator and one lower panel light.
- Upper LED turns ON when the switch is pressed IN.
- Lower LED can be wired to a separate dash-light circuit.
Tacoma 3rd Gen graphic and Large Push compatibility
The Tacoma 3rd Gen reference describes the vehicle graphic and the intended panel appearance. It does not limit the switch to that model or generation. This design has the same dimensions, electrical specifications and vehicle compatibility as a regular CH4X4 Large Push switch. It can also be installed in the other listed vehicles when the mounting opening and position match.
Wiring and installation — fused relay required
A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch. Route accessory power through a suitably rated relay circuit with appropriate fuse protection.
Follow the supplied wiring diagram and the accessory manufacturer’s instructions. The connector and cable provide the switch-side connection. The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately. Have your installer confirm relay, wiring and fuse selection for the accessory load.
Included with Grille LED Lights Symbol
- 1 CH4X4 Large Push latching ON/OFF switch.
- 1 connector with cable.
- Wiring diagram supplied with the switch.
Relay and controlled lighting equipment are sold separately. The supplied connector provides the switch-side connection, not a complete accessory power harness.
Compatible with Toyota vehicles
Check the vehicle year, trim, market and actual dash opening before ordering. Observe the position restrictions shown for Tacoma and Tundra. This is a CH4X4 aftermarket switch for compatible Toyota applications.
- Toyota Tacoma 2005–2011
- Toyota Tacoma 2012–2015 (left side ONLY)
- Toyota Tacoma 2016–2020 (left side ONLY)
- Toyota FJ Cruiser 2007–2014
- Toyota Fortuner 2005–2014
- Toyota Hilux 2005–2014
- Toyota Highlander 2001–2007
- Toyota Tundra 2005–2006 (center console, if equipped)
- Toyota 4Runner 2003–2009
- Toyota Prado 120 Series 2003–2009
- Toyota Land Cruiser 100 Series 1998–2007
- Toyota Land Cruiser 75, 76, 78 and 79 Series
