The Spot Lights push switch gives a suitable auxiliary spotlight circuit its own ON/OFF button. The named legend helps you distinguish this control from flood, side or other lighting circuits without changing the look of the surrounding panel.
Build a Spot Lights control circuit
Start with the lighting equipment’s electrical requirements. This electronic Single Pole Single Throw switch is rated at 3A at 12V and has short circuit protection. The accessory MUST be wired through a fused relay in ALL cases.
A 12V lamp supply does not mean the complete lamp load should pass through the button. Follow the supplied switch diagram and the connected equipment’s installation instructions when arranging the relay, fuse and wiring.
Read the two LED functions correctly
The upper LED turns ON when the switch is pressed IN. The lower light can be wired to a separate dash-light circuit. These are switch illumination features; the button does not measure lamp output or confirm the condition of the lighting equipment.
Mounting dimensions and finish

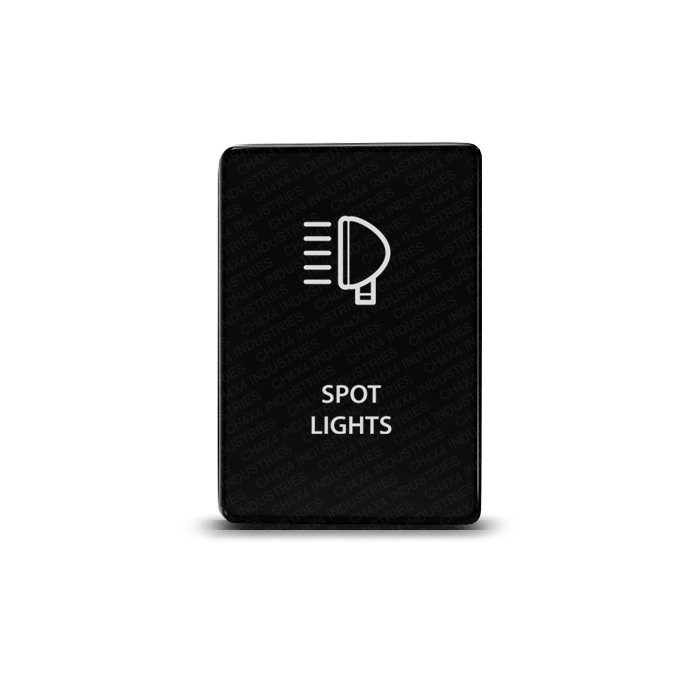

The face is 32.5 × 22 mm, approximately 1.28 × 0.87 inches. Heavy-duty ABS construction, a matte black hard face and a laser-etched Spot Lights legend provide an OEM-style finish for a factory look.
Compatible with Toyota vehicles listed here
Confirm the switch opening before purchase. The Tacoma listing covers the center console only.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Included with the switch
The package contains one Small Push ON/OFF switch and one connector with cable. A wiring diagram is supplied to identify the switch connections. Spotlights and a fused relay are separate installation components, not listed package contents.
Compare other Small Push lighting controls if your panel contains several light groups. For original vehicle-control information, consult the appropriate Toyota owner’s manual.
