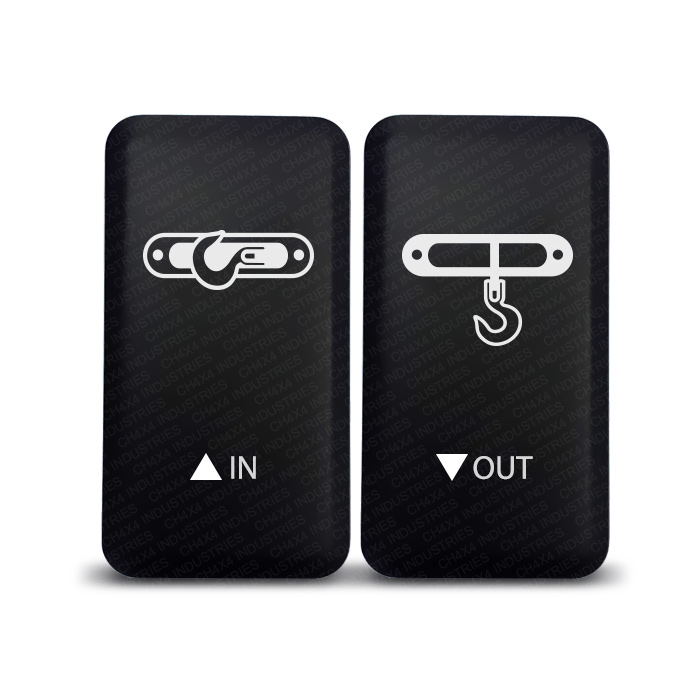

CH4X4 momentary push switch for Toyota IN-OUT – IN-OUT Symbol, 39 × 21 mm Large Push pair

CH4X4 Momentary Push Switch for Toyota – IN-OUT Symbol

$39.98

A matched pair for clearly marked IN and OUT control positions. The CH4X4 IN-OUT Symbol momentary push switch for Toyota set includes two Large Push switches and two connectors with cables.

Each switch is SPST ON/OFF: press and hold for ON, release for OFF. Each face measures 39 × 21 mm. A fused relay is required in ALL installations. Relays and controlled equipment are sold separately.

Switch LED Color

Clear

Description
Additional information

Give two momentary control positions a matching factory look with the CH4X4 IN-OUT Symbol set. This momentary push switch for Toyota IN-OUT applications is supplied as a pair, with a connector and cable for each switch. The matte black faces fit the Large Push format used by the listed vehicles.

IN-OUT Symbol: two controls with momentary action

Each SPST ON/OFF switch closes its circuit while pressed and returns to OFF when released. The IN-OUT Symbol markings help identify the two control positions. Use the pair with equipment whose control system accepts this type of input, following that equipment’s wiring instructions. The switches alone do not reverse a motor or provide a complete directional controller.

Package contents

2 CH4X4 Large Push momentary switches — IN-OUT Symbol.
2 connectors with cable.
Wiring diagram supplied with the switches.

Relay and controlled equipment sold separately.

Momentary push switch for Toyota IN-OUT: Large Push specifications

Face dimensions: 39 × 21 mm (approximately 1.54 × 0.83 inches). Verify the mounting opening separately.
Single Pole Single Throw (SPST), momentary ON/OFF operation: press and hold for ON; release for OFF.
Electronic switch rated at 3A at 12V, with short circuit protection.
Heavy-duty ABS body with a matte black hard surface.
IN-OUT Symbol legend laser etched directly into the face.
Two LEDs per switch: one upper indicator and one lower panel light.
Upper LED turns ON when the switch is pressed IN.
Lower LED can be wired to a separate dash-light circuit.

Wiring and installation — fused relay required

A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch. Route accessory power through a suitably rated relay circuit with appropriate fuse protection.

Follow the supplied wiring diagram and the accessory manufacturer’s instructions. The connector and cable provide the switch-side connection. The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately. Have your installer confirm relay, wiring and fuse selection for the accessory load.

Planning your IN-OUT Symbol installation

Plan the two mounting positions together before installation. Confirm that both openings accept the Large Push format and allow the wiring to be routed correctly. A 39 × 21 mm face measurement describes each switch face, not a specified panel cutout. Review the listed vehicle years and mounting restrictions before ordering the set.

Compatible with Toyota mounting applications

Check the vehicle year, trim, market and actual dash opening. Observe the mounting-position restrictions below. This CH4X4 aftermarket switch is designed for the listed Toyota applications.

Toyota Tacoma 2005–2011
Toyota Tacoma 2012–2015 (left side ONLY)
Toyota Tacoma 2016–2020 (left side ONLY)
Toyota FJ Cruiser 2007–2014
Toyota Fortuner 2005–2014
Toyota Hilux 2005–2014
Toyota Highlander 2001–2007
Toyota Tundra 2005–2006 (center console, if equipped)
Toyota 4Runner 2003–2009
Toyota Prado 120 Series 2003–2009
Toyota Land Cruiser 100 Series 1998–2007
Toyota Land Cruiser 75, 76, 78 and 79 Series

Weight	4 oz
Dimensions	5 × 5 × 2 in
Switch Action	Momentary
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Push
Function	Momentary
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4X4 Momentary Push Switch for Toyota – IN-OUT Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a Momentary switch — it only stays active while you hold it and springs back off, ideal for horns, winches, and anything you only want on for a moment.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
