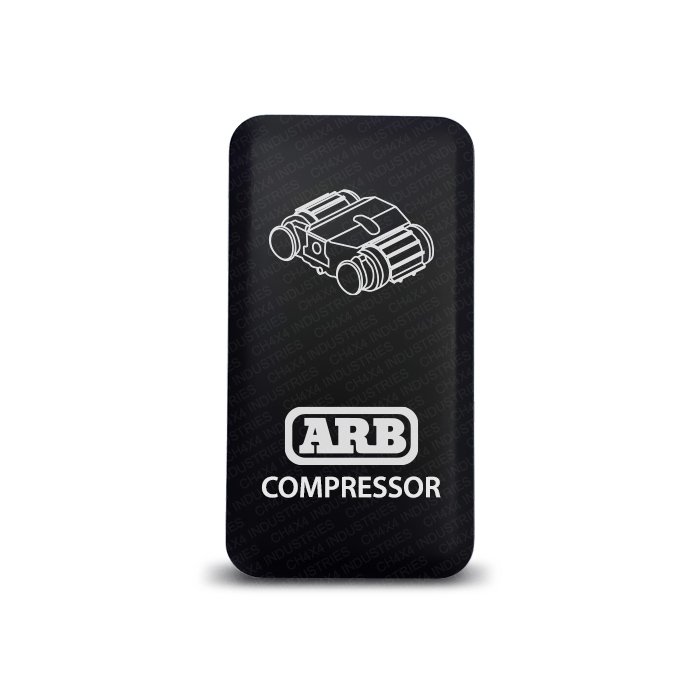

This CH4X4 push switch for Toyota ARB compressor installations features the ARB Compressor Symbol 2 design. Its alternative laser-etched artwork gives your onboard-air control a clearly labeled position in a Large Push dashboard opening.
ARB Compressor Symbol 2: artwork and installation
The ARB Compressor Symbol 2 artwork lets you choose the compressor label that suits your panel. Match the switch wiring to the compressor manufacturer’s control requirements and use the required fused relay.
Push switch for Toyota ARB compressor: Large Push specifications
- Face size: 39 × 21 mm (approximately 1.54 × 0.83 inches). This is the face measurement; verify the mounting opening separately.
- Single Pole Single Throw (SPST), maintained ON/OFF operation: press in to switch ON and press again to switch OFF.
- Electronic switch rated at 3A at 12V for accessory control, with short circuit protection. A fused relay remains mandatory.
- Heavy-duty ABS construction with a matte black hard surface.
- ARB Compressor Symbol 2 legend laser etched directly into the switch face.
- Two LEDs: one upper indicator and one lower panel light.
- The upper LED turns ON when the switch is pressed IN.
- The lower LED can be wired to a separate dash-light circuit.
Wiring and installation — fused relay required
A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch. Route accessory power through a suitably rated, fused relay circuit to avoid overloading the switch.
Use the supplied wiring diagram and confirm the accessory manufacturer’s control requirements. The included connector and wiring pigtail provide the switch-side connection; they are not a complete accessory wiring harness. A suitable CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately. Have a qualified installer check the wiring, fuse protection and relay selection if needed.
What is included
- 1 CH4X4 Large Push ON/OFF switch — ARB Compressor Symbol 2.
- 1 connector with wiring pigtail.
- Wiring diagram.
The fused relay and the accessory being controlled are sold separately.
Compatible with Toyota mounting applications
Check the model year, trim, market and actual dash opening before ordering. Observe the position restrictions below. This is a CH4X4 aftermarket switch for Toyota applications, not a Toyota-manufactured part.
- Toyota Tacoma 2005–2011
- Toyota Tacoma 2012–2015 (left side ONLY)
- Toyota Tacoma 2016–2020 (left side ONLY)
- Toyota FJ Cruiser 2007–2014
- Toyota Fortuner 2005–2014
- Toyota Hilux 2005–2014
- Toyota Highlander 2001–2007
- Toyota Tundra 2005–2006 (center console, if equipped)
- Toyota 4Runner 2003–2009
- Toyota Prado 120 Series 2003–2009
- Toyota Land Cruiser 100 Series 1998–2007
- Toyota Land Cruiser 75, 76, 78 and 79 Series
