Choose a dedicated dashboard button for your horn control circuit with the CH4X4 Horn Symbol. This momentary push switch for Toyota horn applications combines press-and-hold operation with a laser-etched legend, helping keep an added control easy to identify.
Horn Symbol control that returns to OFF
Hold the button to keep the switch circuit ON; release it to return to OFF. This momentary SPST action suits a control arrangement that calls for an input only while pressed. Confirm the horn system’s requirements before wiring, and keep the horn’s accessory load on the fused relay circuit.
Momentary push switch for Toyota horn: Large Push specifications
- Face dimensions: 39 × 21 mm (approximately 1.54 × 0.83 inches). Verify the mounting opening separately.
- Single Pole Single Throw (SPST), momentary ON/OFF operation: press and hold for ON; release for OFF.
- Electronic switch rated at 3A at 12V, with short circuit protection.
- Heavy-duty ABS body with a matte black hard surface.
- Horn Symbol legend laser etched directly into the face.
- Two LEDs per switch: one upper indicator and one lower panel light.
- Upper LED turns ON when the switch is pressed IN.
- Lower LED can be wired to a separate dash-light circuit.
Package contents
- 1 CH4X4 Large Push momentary switch — Horn Symbol.
- 1 connector with cable.
- Wiring diagram supplied with the switch.
Relay and controlled equipment sold separately.
Wiring and installation — fused relay required
A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch. Route accessory power through a suitably rated relay circuit with appropriate fuse protection.
Follow the supplied wiring diagram and the accessory manufacturer’s instructions. The connector and cable provide the switch-side connection. The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately. Have your installer confirm relay, wiring and fuse selection for the accessory load.
Planning your Horn Symbol installation

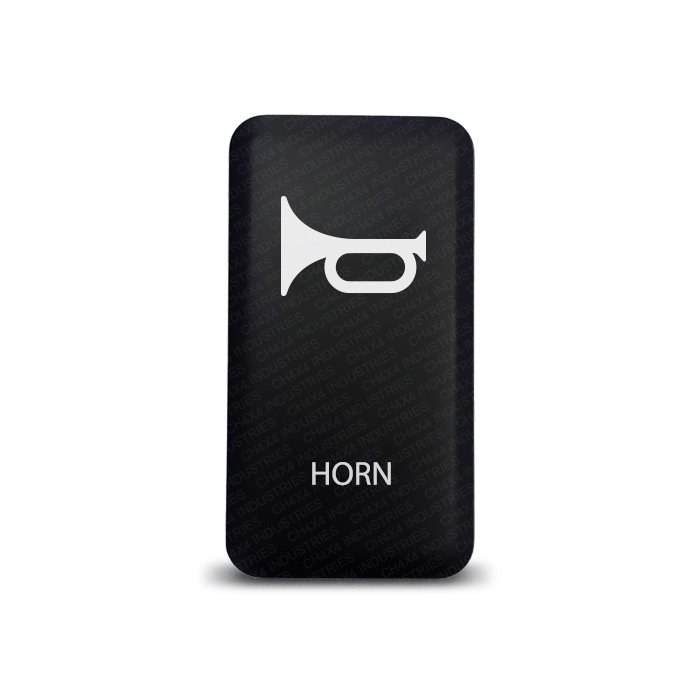

This listing is the Horn Symbol design identified by SKU CH4X4-TOY-MOM-HOR. Use the product photo to choose the artwork for your panel. Its matte black ABS face has the same Large Push mounting format as the other designs in this series, so the symbol choice does not change the vehicle fitment list.
Compatible with Toyota mounting applications
Check the vehicle year, trim, market and actual dash opening. Observe the mounting-position restrictions below. This CH4X4 aftermarket switch is designed for the listed Toyota applications.
- Toyota Tacoma 2005–2011
- Toyota Tacoma 2012–2015 (left side ONLY)
- Toyota Tacoma 2016–2020 (left side ONLY)
- Toyota FJ Cruiser 2007–2014
- Toyota Fortuner 2005–2014
- Toyota Hilux 2005–2014
- Toyota Highlander 2001–2007
- Toyota Tundra 2005–2006 (center console, if equipped)
- Toyota 4Runner 2003–2009
- Toyota Prado 120 Series 2003–2009
- Toyota Land Cruiser 100 Series 1998–2007
- Toyota Land Cruiser 75, 76, 78 and 79 Series
