CH4X4 Push Switch for Toyota Tacoma – Bed Lights Symbol

$23.98

Give the cargo-light circuit its own Bed Lights Symbol control, with Tacoma artwork and a matte black factory look.

39 × 21 mm face; 3A at 12V with two LEDs. Fits the same listed vehicles as regular Large Push switches. A fused relay is required in ALL installations. Relay and lighting equipment sold separately.

Switch LED Color

Clear

Description
Additional information

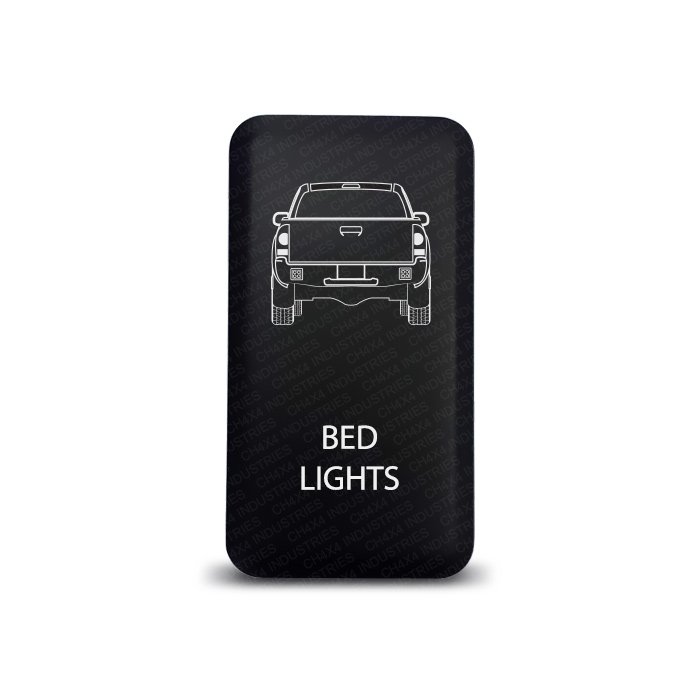

Put bed lighting on a clearly labeled dashboard control. The CH4X4 push switch for Toyota Tacoma bed lights uses a laser-etched Bed Lights Symbol face with Tacoma artwork and an OEM-style matte black finish.

Bed Lights Symbol: choosing this control

Bed Lights Symbol is useful when cargo-area illumination shares a panel with driving lights or other accessories. The Tacoma graphic connects the label with the truck-themed layout, while the dedicated wording identifies the bed-light circuit. This switch supplies manual ON/OFF control through a fused relay; it does not include bed lamps or a cargo-light wiring kit.

Tacoma graphic and Large Push compatibility

The Tacoma reference describes the vehicle graphic and the intended panel appearance. It does not limit the switch to that model. This design has the same dimensions, electrical specifications and vehicle compatibility as a regular CH4X4 Large Push switch. It can also be installed in the other listed vehicles when the mounting opening and position match.

Push switch for Toyota Tacoma bed lights: specifications

Face size: 39 × 21 mm (approximately 1.54 × 0.83 inches). Verify the actual mounting opening separately.
Single Pole Single Throw (SPST), latching ON/OFF operation: press once for ON and again for OFF.
Electronic switch rated at 3A at 12V, with short circuit protection.
Heavy-duty ABS construction with a matte black hard surface.
Bed Lights Symbol and Tacoma artwork laser etched directly into the face.
Two LEDs: one upper indicator and one lower panel light.
Upper LED turns ON when the switch is pressed IN.
Lower LED can be wired to a separate dash-light circuit.

Wiring and installation — fused relay required

A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch. Route accessory power through a suitably rated relay circuit with appropriate fuse protection.

Follow the supplied wiring diagram and the accessory manufacturer’s instructions. The connector and cable provide the switch-side connection. The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately. Have your installer confirm relay, wiring and fuse selection for the accessory load.

Included with Bed Lights Symbol

1 CH4X4 Large Push latching ON/OFF switch.
1 connector with cable.
Wiring diagram supplied with the switch.

Relay and controlled lighting equipment are sold separately. The supplied connector provides the switch-side connection, not a complete accessory power harness.

Compatible with Toyota vehicles

Check the vehicle year, trim, market and actual dash opening before ordering. Observe the position restrictions shown for Tacoma and Tundra. This is a CH4X4 aftermarket switch for compatible Toyota applications.

Toyota Tacoma 2005–2011
Toyota Tacoma 2012–2015 (left side ONLY)
Toyota Tacoma 2016–2020 (left side ONLY)
Toyota FJ Cruiser 2007–2014
Toyota Fortuner 2005–2014
Toyota Hilux 2005–2014
Toyota Highlander 2001–2007
Toyota Tundra 2005–2006 (center console, if equipped)
Toyota 4Runner 2003–2009
Toyota Prado 120 Series 2003–2009
Toyota Land Cruiser 100 Series 1998–2007
Toyota Land Cruiser 75, 76, 78 and 79 Series

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4X4 Push Switch for Toyota Tacoma – Bed Lights Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Purpose-built to slot into the factory-style dash opening on Toyota Tacoma applications, no cutting or adapters needed.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

Will this switch fit my Toyota Tacoma?

Yes — this switch is categorized under our Toyota Tacoma lineup and matches that application's factory-style dash opening.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
