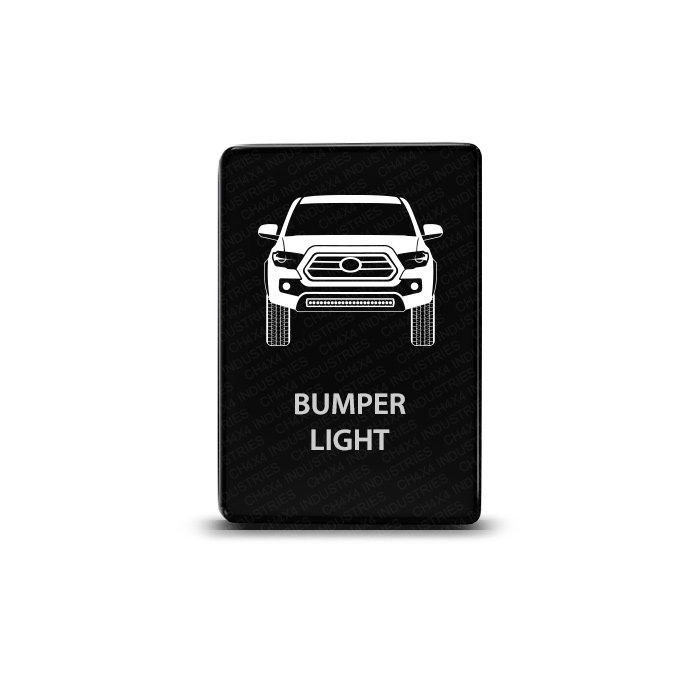

CH4x4 Small Push Switch for Toyota Tacoma 3rd Gen – Bumper Light Symbol

$23.98

The Tacoma Bumper Light Symbol switch marks a bumper-light circuit with Tacoma artwork and an OEM-style matte black finish. Its compatibility extends to all listed Toyota models. Small Push face: 32.5 × 22 mm; latching SPST ON/OFF, 12V 3A and two LEDs. A fused relay is mandatory.

Switch LED Color

Clear

Description
Additional information

A dedicated Tacoma Bumper Light Symbol button helps identify the control assigned to bumper lighting. The Tacoma graphic gives this version a truck-specific appearance while retaining the standard Small Push hardware. Its matte black face blends with a matching factory panel.

Choosing the Tacoma Bumper Light Symbol design

This version is particularly suited to a Tacoma-themed interior, but the illustration is not a restriction on fitment. It is compatible with Toyota applications across the complete list below. The artwork is laser etched directly onto the face and does not change the latching ON/OFF action.

Use the Tacoma Bumper Light Symbol label to distinguish this circuit from other lighting controls in the cabin. Compare the product gallery with the Bumper Light Bar version if you are selecting between labels. Both the panel location and the connected accessory wiring need to suit the installation.

Switch specifications

Single Pole Single Throw (SPST), latching ON/OFF: press for ON, press again for OFF.
Electronic switch rated at 3A, 12V, with short-circuit protection.
32.5 × 22 mm face, approximately 1.28 × 0.87 inches.
Heavy-duty ABS plastic with a matte black hard surface.
Laser-etched graphic and legend.
Upper LED is ON when the switch is pressed in.
Lower LED can be connected to a separate dash-light circuit.

In ALL cases, the accessory MUST be wired through a fused relay. Follow the supplied diagram and the accessory wiring requirements.

Included hardware

One Small Push ON/OFF switch, one connector with cable and a supplied wiring diagram.

Compatible with Toyota vehicles

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–ON
Toyota Corolla 2006–2013
Toyota Highlander 2008–ON
Toyota RAV4 2008–2012
Toyota Yaris 2008
Toyota Camry 2011–2014

For applications marked ON, verify the exact year and panel opening. See the Small Push Series for other designs and Toyota owner manuals for vehicle reference information.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Controls	Bumper Light
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota
Series	Square Tacoma
Toyota Model	Tacoma 3rd Gen (2016-2023)

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota Tacoma 3rd Gen - Bumper Light Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Purpose-built to slot into the factory-style dash opening on Toyota Tacoma applications, no cutting or adapters needed.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

Will this switch fit my Toyota Tacoma?

Yes — this switch is categorized under our Toyota Tacoma lineup and matches that application's factory-style dash opening.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
