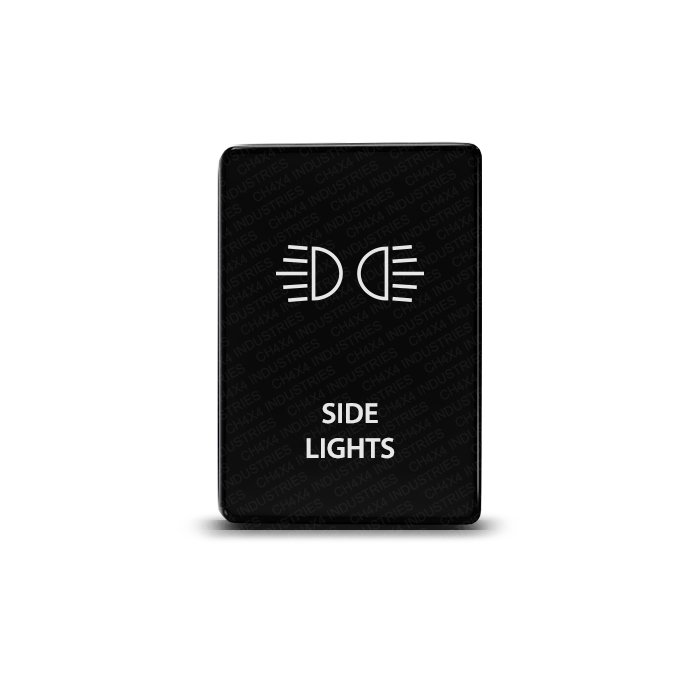

The Side Lights push switch creates a distinct control position for a suitable auxiliary lighting installation. Its laser-etched legend helps separate this circuit from front-facing lights and other accessories on your panel. The Small Push format offers a factory look in the listed Toyota mounting locations.
Side Lights control and illumination
This electronic Single Pole Single Throw switch provides ON/OFF operation at 12V, with a 3A rating and short circuit protection. The upper LED illuminates when the button is pressed IN, giving a visible indication of the switch position.
A second, lower LED can be wired to a separate dash-light circuit. Follow the supplied wiring diagram to distinguish that illumination connection from the accessory control wiring.
Plan the relay circuit first
The accessory MUST be wired through a fused relay in ALL cases. Do not route the lighting load directly through the button simply because the lamps use a 12V supply. Select the rest of the installation to suit the connected equipment and its instructions.
Face size and materials
- 32.5 × 22 mm face, approximately 1.28 × 0.87 inches.
- Heavy-duty ABS body with a matte black hard face.
- Laser-etched Side Lights marking.
- Separate upper and lower LED illumination.
Compatible with Toyota applications
Check the model year and available opening before ordering. The Tacoma application is restricted to the center console.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
What arrives in the package?
You receive one Small Push ON/OFF switch and one connector with cable. A wiring diagram is supplied. The listed package does not include the side lights or relay.
Browse the Small Push series to coordinate nearby controls, and consult the relevant Toyota owner’s manual when identifying original vehicle controls.
