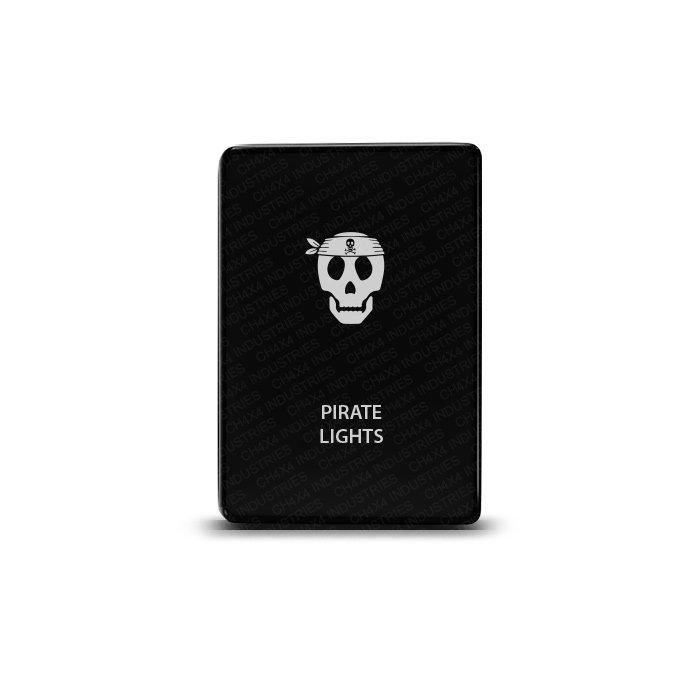

Pirate Lights Symbol 6 adds a themed control to a lighting accessory panel without changing the specified Small Push format. Its matte black face supports a factory look, and the laser-etched artwork identifies this particular design option.
A readable layout for a themed switch
Decide which circuit Pirate Lights Symbol 6 will operate before arranging neighboring buttons. A decorative legend is a design choice, so the function assigned to it should be clear to the person using the vehicle.
Compare the Symbol 4 design and the Symbol 7 version if you are selecting among pirate-themed artwork. The numbers distinguish designs; they do not describe different electrical capacities or lighting modes.
Operation and materials
- 12V 3A electronic switch with short circuit protection.
- Single Pole Single Throw ON/OFF control.
- Heavy-duty ABS construction and matte black hard face.
- Upper LED illuminates with the button pressed IN.
- Lower LED can connect to a separate dash-light circuit.
Small Push face size and Toyota fitment
Dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches. Confirm the intended opening for this OEM-style format and check the vehicle year. It is compatible with Toyota applications listed below.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
The Tacoma application is restricted to the center console. Do not infer fit at another position from the model name alone.
Wiring and included components
The accessory MUST be wired through a fused relay in ALL cases. Select the fuse, relay and load wiring to suit the connected lights. The switch diagram shows the button and LED connections.
One Small Push ON/OFF switch and one connector with cable are included, with a wiring diagram supplied. Consult the appropriate Toyota owner’s manual for original vehicle-control information, and check your planned layout before fitting Pirate Lights Symbol 6.
