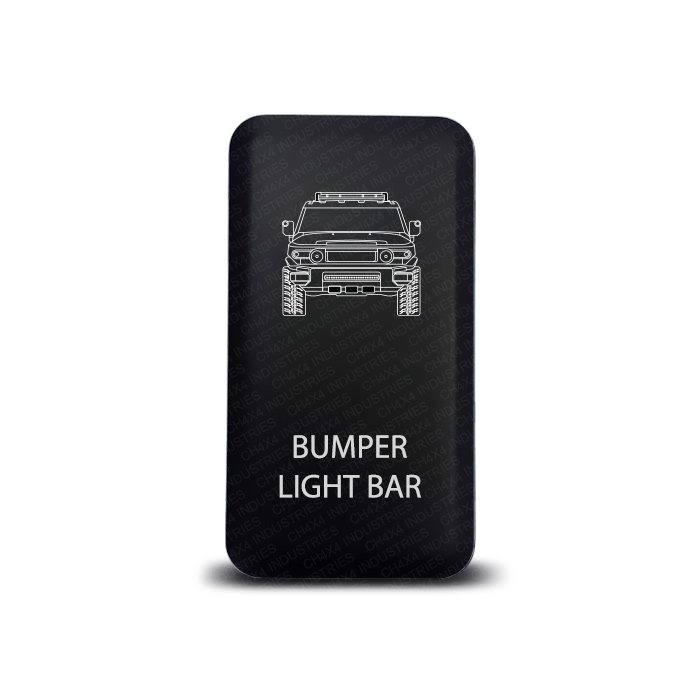

Give a bumper-mounted light bar its own clearly identified dashboard control. The CH4X4 push switch for Toyota FJ Cruiser bumper light bar applications combines the vehicle graphic with a dedicated light-bar legend, making it a natural choice for an FJ Cruiser accessory panel.
Bumper Light Bar Symbol: identify the bar circuit
A bumper light bar may sit alongside other auxiliary lamps. Choosing the matching legend helps you distinguish that bar’s control from fog lights or separate bumper lights. The switch provides one latching ON/OFF circuit; the number of lamps powered by the installation is determined by the appropriately rated relay wiring.
FJ Cruiser artwork, standard Large Push fitment
The vehicle graphic is intended to complement a Toyota FJ Cruiser installation. It does not make the switch exclusive to that vehicle: this design uses the same dimensions, electrical specifications and compatibility list as a regular CH4X4 Large Push switch. It can also be installed in the other listed vehicles when the mounting opening matches.
Push switch for Toyota FJ Cruiser bumper light bar: specifications
- Face size: 39 × 21 mm (approximately 1.54 × 0.83 inches). Verify the actual mounting opening separately.
- Single Pole Single Throw (SPST), latching ON/OFF operation: press once for ON and again for OFF.
- Electronic switch rated at 3A at 12V, with short circuit protection.
- Heavy-duty ABS construction and a matte black hard surface for an OEM-style appearance.
- Bumper Light Bar Symbol with FJ Cruiser artwork, laser etched directly into the face.
- Two LEDs: one upper indicator and one lower panel light.
- Upper LED turns ON when the switch is pressed IN.
- Lower LED can be wired to a separate dash-light circuit.
Wiring and installation — fused relay required
A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch. Route accessory power through a suitably rated relay circuit with appropriate fuse protection.
Follow the supplied wiring diagram and the accessory manufacturer’s instructions. The connector and cable provide the switch-side connection. The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately. Have your installer confirm relay, wiring and fuse selection for the accessory load.
Included with Bumper Light Bar Symbol
- 1 CH4X4 Large Push latching ON/OFF switch.
- 1 connector with cable.
- Wiring diagram supplied with the switch.
Lighting equipment and relay are sold separately. Follow the switch diagram and the accessory manufacturer’s instructions during installation.
Compatible with Toyota vehicles
Check the model year, trim, market and actual dash opening before ordering. Observe the position restrictions shown for Tacoma and Tundra. This is a CH4X4 aftermarket product for Toyota applications.
- Toyota Tacoma 2005–2011
- Toyota Tacoma 2012–2015 (left side ONLY)
- Toyota Tacoma 2016–2020 (left side ONLY)
- Toyota FJ Cruiser 2007–2014
- Toyota Fortuner 2005–2014
- Toyota Hilux 2005–2014
- Toyota Highlander 2001–2007
- Toyota Tundra 2005–2006 (center console, if equipped)
- Toyota 4Runner 2003–2009
- Toyota Prado 120 Series 2003–2009
- Toyota Land Cruiser 100 Series 1998–2007
- Toyota Land Cruiser 75, 76, 78 and 79 Series
