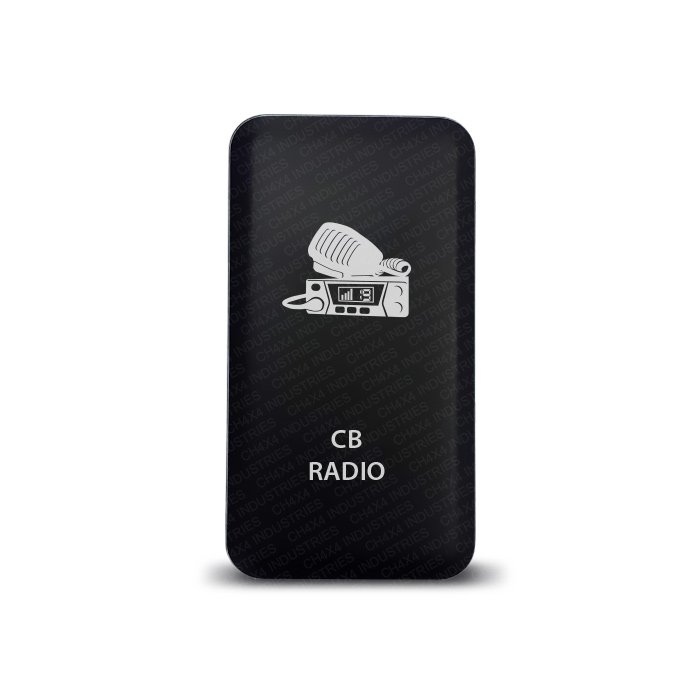

CH4X4 Push Switch for Toyota – CB Radio Symbol

$23.98

Mark your radio power control with this push switch for Toyota CB radio, featuring a radio-and-microphone icon. Its latching action suits a compatible relay arrangement and does not replace the microphone’s push-to-talk control. Large Push face: 39 × 21 mm, with two LEDs.

Every installation requires a fused relay. Keep the accessory load off the contacts of this 3A, 12V control switch. Relay sold separately. Confirm dashboard opening and listed fitment before ordering.

Switch LED Color

Clear

Description
Additional information

A radio-and-microphone illustration makes the push switch for Toyota CB radio recognizable among accessory buttons. CB RADIO lettering labels a maintained power-control point for an appropriately designed radio installation.

CB Radio Symbol: design and use

This is a latching ON/OFF switch, not a momentary push-to-talk button. Use it only with a suitable fused relay power arrangement that meets the radio manufacturer’s requirements. Microphone, antenna and audio connections remain with the radio; the switch does not transmit or change channels.

push switch for Toyota CB radio: Large Push specifications

39 × 21 mm face (approximately 1.54 × 0.83 inches). This is the face size, not the mounting cutout.
Single Pole Single Throw (SPST), maintained ON/OFF operation: press IN for ON and press again for OFF.
Electronic switch rated at 3 Amp, 12V, with short circuit protection.
Heavy-duty ABS body with a hard matte black face and an OEM-style appearance.
CB Radio Symbol laser etched directly into the face.
Two LEDs: an upper ON indicator and a lower panel light.
Upper LED illuminates when the switch is pressed IN.
Lower LED can be wired to a separate dashboard-light circuit.

Wiring and installation — fused relay required

Every installation requires a fused relay. Keep the accessory load off the contacts of this 3A, 12V control switch.

For the push switch for Toyota CB radio, follow the supplied connection diagram alongside the equipment manufacturer’s installation instructions. Your installer must match the relay, fuse and wire ratings to the load. The connector with cable is a switch-side connection, not a complete power harness.

The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately.

What is included

1 CH4X4 push switch for Toyota CB radio — CB Radio Symbol.
1 connector with cable.
Wiring diagram.

Product SKU: CH4X4-TOY-CBRA. Relay and controlled equipment sold separately.

Compatible Toyota mounting applications

Check the model year, trim, market and actual dashboard opening before ordering. Observe the position restrictions below. Mounting fitment does not establish electrical compatibility with the controlled equipment. This is a CH4X4 aftermarket product for compatible Toyota applications.

Toyota FJ Cruiser 2007-2014
Toyota Fortuner 2005-2014
Toyota Hilux 2005-2014
Toyota Tacoma 2005-2011
Toyota Tacoma 2012-2014 (Left Side ONLY)
Toyota Highlander 2001-2007
Toyota Tundra 2005-2006 (Center Console if equipped)
Toyota 4Runner 2003-2009
Toyota Prado 120 Series 2003-2009
Toyota Land Cruiser 100 Series 1998-2007
Toyota Land Cruiser 75, 76, 78 & 79 series

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4X4 Push Switch for Toyota – CB Radio Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
