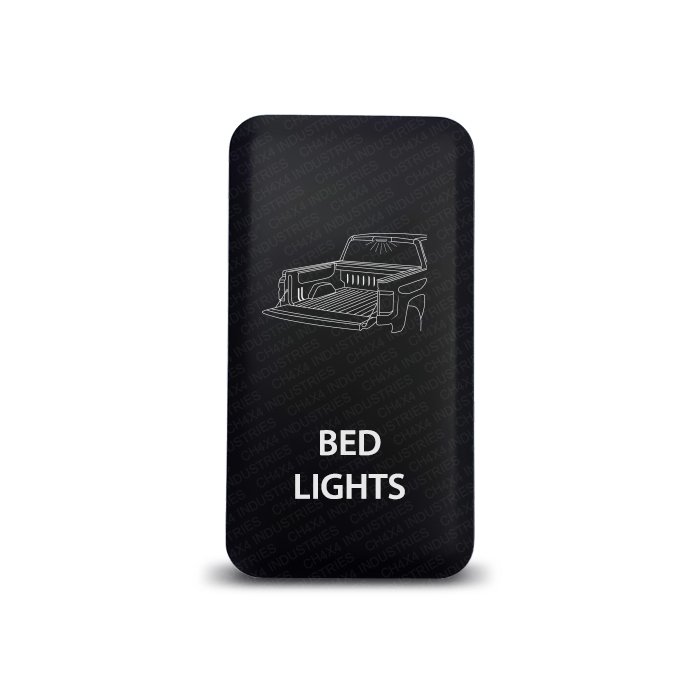

Identify cargo-area lighting at a glance using this push switch for Toyota bed lights. The pickup-bed illustration above BED LIGHTS lettering helps separate the bed-light circuit from roof, bumper and other accessory lights.
Bed Lights Symbol: design and use
A location-specific label is useful when your truck carries several lighting circuits. This switch controls a suitable relay arrangement for the bed lights; the illustration does not specify lamp quantity, mounting hardware or brightness. Size the relay, fuse and wiring for the actual combined lighting load.
push switch for Toyota bed lights: Large Push specifications
- 39 × 21 mm face (approximately 1.54 × 0.83 inches). This is the face size, not the mounting cutout.
- Single Pole Single Throw (SPST), maintained ON/OFF operation: press IN for ON and press again for OFF.
- Electronic switch rated at 3 Amp, 12V, with short circuit protection.
- Heavy-duty ABS body with a hard matte black face and an OEM-style appearance.
- Bed Lights Symbol laser etched directly into the face.
- Two LEDs: an upper ON indicator and a lower panel light.
- Upper LED illuminates when the switch is pressed IN.
- Lower LED can be wired to a separate dashboard-light circuit.
Wiring and installation — fused relay required
A fused relay is required in ALL installations. Accessory power must not run directly through this 3A, 12V switch.
Install the push switch for Toyota bed lights using the supplied wiring diagram and the connected equipment’s instructions. Choose relay capacity, cable size and fuse protection for the actual load. The included connector and cable serve the switch side, not the complete accessory power circuit.
The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately.
What is included
- 1 CH4X4 push switch for Toyota bed lights — Bed Lights Symbol.
- 1 connector with cable.
- Wiring diagram.
Product SKU: CH4X4-TOY-BEDL. Relay and controlled equipment sold separately.
Compatible Toyota mounting applications
Check the model year, trim, market and actual dashboard opening before ordering. Observe the position restrictions below. Mounting fitment does not establish electrical compatibility with the controlled equipment. This is a CH4X4 aftermarket product for compatible Toyota applications.
- Toyota Tacoma 2005-2011
- Toyota Tacoma 2012-2015 (Left Side ONLY)
- Toyota Tacoma 2016 (Left Side ONLY)
- Toyota FJ Cruiser 2007-2014
- Toyota Fortuner 2005-2014
- Toyota Hilux 2005-2014
- Toyota Highlander 2001-2007
- Toyota Tundra 2005-2006 (Center Console if equipped)
- Toyota 4Runner 2003-2009
- Toyota Prado 120 Series 2003-2009
- Toyota Land Cruiser 100 Series 1998-2007
- Toyota Land Cruiser 75, 76, 78 & 79 series
