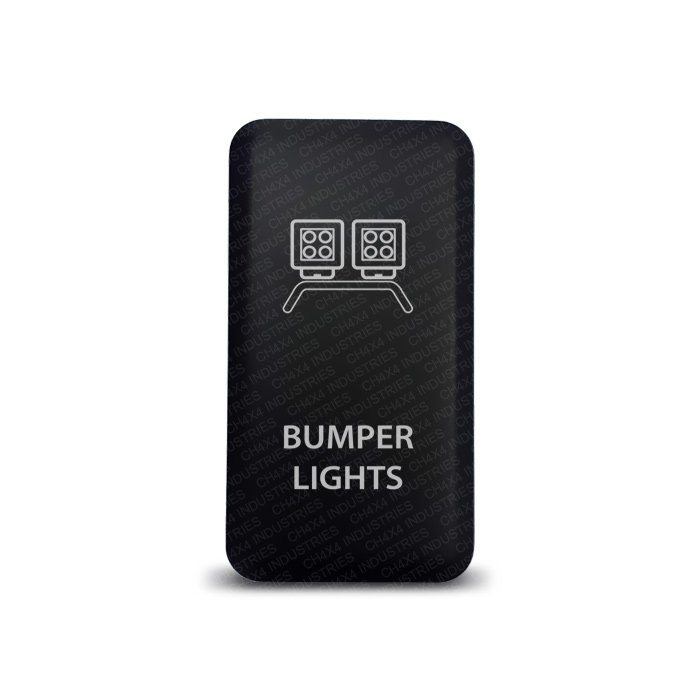

Two square lamps above a bumper outline identify this push switch for Toyota bumper lights. The BUMPER LIGHTS label is useful for keeping front bumper illumination distinct from roof lights and other switched accessories.
Bumper Lights Symbol: design and use
Use this version when the mounting location is the clearest way to name your lighting circuit. The two-lamp artwork is an identifier, not a limit on the number or style of lamps. Determine the total accessory load and select the external relay, fuse and power wiring accordingly.
push switch for Toyota bumper lights: Large Push specifications
- 39 × 21 mm face (approximately 1.54 × 0.83 inches). This is the face size, not the mounting cutout.
- Single Pole Single Throw (SPST), maintained ON/OFF operation: press IN for ON and press again for OFF.
- Electronic switch rated at 3 Amp, 12V, with short circuit protection.
- Heavy-duty ABS body with a hard matte black face and an OEM-style appearance.
- Bumper Lights Symbol laser etched directly into the face.
- Two LEDs: an upper ON indicator and a lower panel light.
- Upper LED illuminates when the switch is pressed IN.
- Lower LED can be wired to a separate dashboard-light circuit.
Wiring and installation — fused relay required
A fused relay is required in ALL installations. Accessory power must not run directly through this 3A, 12V switch.
Install the push switch for Toyota bumper lights using the supplied wiring diagram and the connected equipment’s instructions. Choose relay capacity, cable size and fuse protection for the actual load. The included connector and cable serve the switch side, not the complete accessory power circuit.
The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately.
What is included
- 1 CH4X4 push switch for Toyota bumper lights — Bumper Lights Symbol.
- 1 connector with cable.
- Wiring diagram.
Product SKU: CH4X4-TOY-BUML. Relay and controlled equipment sold separately.
Compatible Toyota mounting applications
Check the model year, trim, market and actual dashboard opening before ordering. Observe the position restrictions below. Mounting fitment does not establish electrical compatibility with the controlled equipment. This is a CH4X4 aftermarket product for compatible Toyota applications.
- Toyota FJ Cruiser 2007-2014
- Toyota Fortuner 2005-2014
- Toyota Hilux 2005-2014
- Toyota Tacoma 2005-2011
- Toyota Tacoma 2012-2014 (Left Side ONLY)
- Toyota Highlander 2001-2007
- Toyota Tundra 2005-2006 (Center Console if equipped)
- Toyota 4Runner 2003-2009
- Toyota Prado 120 Series 2003-2009
- Toyota Land Cruiser 100 Series 1998-2007
- Toyota Land Cruiser 75, 76, 78 & 79 series
