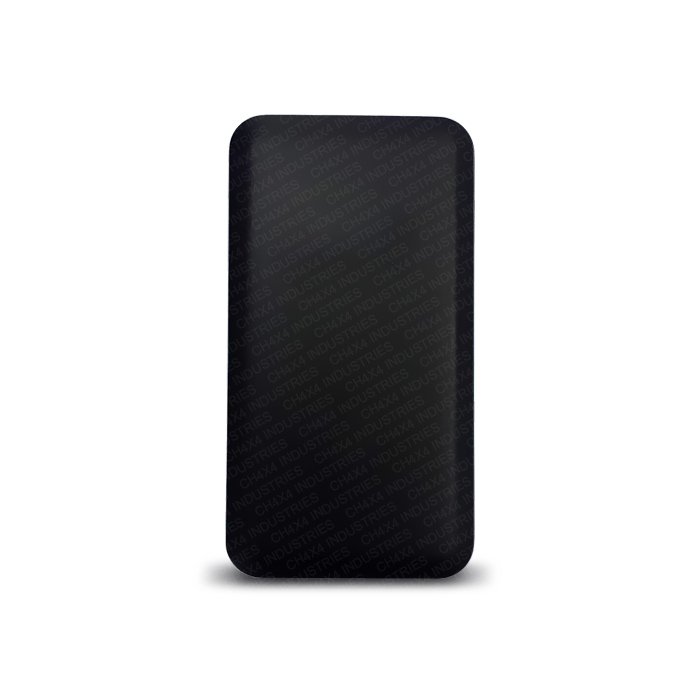

The CH4X4 Industries Push Switch – Blank Face is designed to fit a wide range of Toyota vehicles, including Tacoma, FJ Cruiser, 4Runner, Land Cruiser, Prado, and more. This version features a smooth, unmarked surface with no laser-etched symbols, text, or graphics—perfect for clean, custom, or stealth applications.
Measuring 1.54″ x 0.83″ (39mm x 21mm) on the face, this switch installs neatly into the existing switch panel of your Toyota dashboard. Built from heavy-duty ABS plastic with a matte black finish, it ensures long-term durability and a professional appearance.
⚠️ Installation requires basic knowledge of automotive electrical systems. This switch is rated at 3A (12V only). Since most accessories draw more than 3A, it is mandatory to wire all accessories through a fused relay to prevent the switch from overheating or melting.
Features:
– OEM-style fit – designed for Toyota dashboards
– Blank face – no symbols, no laser etching, no text
– Single Pole Single Throw (SPST) ON-OFF push switch
– Dual LED indicators:
Upper LED lights up when the switch is pressed
Lower LED can be wired to the dash light circuit
– Rated at 3A 12V (must be wired through a fused relay)
– Wiring diagram included
Kit Includes
1 × Push Switch for Toyota (Blank Face)
1 × Connector with wiring harness for installation
Vehicle Compatibility
– Toyota Tacoma (2005–2011)
– Toyota Tacoma (2012–2015, Left Side only)
– Toyota Tacoma (2016–2020, Left Side only)
– Toyota FJ Cruiser (2007–2014)
– Toyota Fortuner (2005–2014)
– Toyota Hilux (2005–2014)
– Toyota Highlander (2001–2007)
– Toyota Tundra (2005–2006, Center Console if equipped)
– Toyota 4Runner (2003–2009)
– Toyota Prado 120 Series (2003–2009)
– Toyota Land Cruiser 100 Series (1998–2007)
– Toyota Land Cruiser 75, 76, 78 & 79 Series
