CH4X4 Push Switch for Toyota – Auxiliary Lights Symbol

$23.98

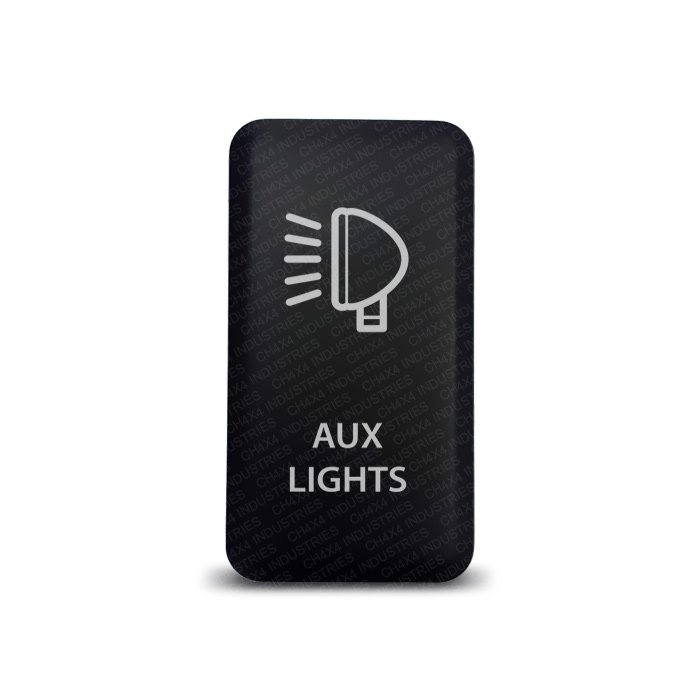

A lamp-and-beam icon above AUX LIGHTS lettering makes this push switch for Toyota auxiliary lights easy to identify. This ON/OFF button is useful when you want a straightforward lighting label rather than one tied to a particular mounting location or lamp brand. The face measures 39 × 21 mm and includes two LEDs.

A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch. Relay sold separately; check the dashboard opening before ordering.

Switch LED Color

Clear

Description
Additional information

For a general auxiliary-light control, this push switch for Toyota auxiliary lights pairs a lamp-and-beam icon with AUX LIGHTS lettering. The straightforward label can identify a suitable lighting relay circuit without naming a specific lamp brand or beam pattern.

Auxiliary Lights Symbol: design and use

Choose Auxiliary Lights Symbol when a general lighting label fits your panel better than a location-specific label such as roof or rear lights. The icon identifies the circuit, not the number, shape or output of the lamps connected to it. Select relay capacity, wiring and fuse protection for the actual combined lighting load.

push switch for Toyota auxiliary lights: Large Push specifications

Large Push face size: 39 × 21 mm, approximately 1.54 × 0.83 inches. This is not the cutout measurement.
Latching SPST ON/OFF operation holds its state after release; a second press switches it OFF.
3A, 12V electronic switch with short circuit protection. Use a properly fused external relay.
Matte black hard surface in heavy-duty ABS for a factory-style dashboard appearance.
Auxiliary Lights Symbol laser etched directly into the switch face.
Two LEDs: one upper ON indicator and one lower panel light.
Upper LED lights when the button is pressed IN.
Lower LED can be connected to a separate dashboard illumination circuit.

Wiring and installation — fused relay required

A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch.

When installing this push switch for Toyota auxiliary lights, follow the supplied wiring diagram together with the equipment manufacturer’s instructions. Have your installer select relay capacity, cable size and fuse protection for the actual load. The connector and cable provide the switch-side connection, not a complete accessory power harness.

The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately.

What is included

1 CH4X4 push switch for Toyota auxiliary lights — Auxiliary Lights Symbol, Large Push ON/OFF version.
1 connector with cable.
Wiring diagram.

Product SKU: CH4X4-TOY-AUXL. Relay and controlled equipment sold separately.

Compatible Toyota mounting applications

Confirm the model year, trim, market and actual dashboard opening before ordering, including the position restrictions below. Dashboard fitment does not establish electrical compatibility with the equipment being controlled. This is a CH4X4 aftermarket product for compatible Toyota applications.

Toyota FJ Cruiser 2007-2014
Toyota Fortuner 2005-2014
Toyota Hilux 2005-2014
Toyota Tacoma 2005-2011
Toyota Tacoma 2012-2014 (Left Side ONLY)
Toyota Highlander 2001-2007
Toyota Tundra 2005-2006 (Center Console if equipped)
Toyota 4Runner 2003-2009
Toyota Prado 120 Series 2003-2009
Toyota Land Cruiser 100 Series 1998-2007
Toyota Land Cruiser 75, 76, 78 & 79 series

Weight	2 oz
Dimensions	5 × 5 × 3 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	White
Switch Type	Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4X4 Push Switch for Toyota – Auxiliary Lights Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
