CH4X4 Push Switch for Toyota – Audio Power Symbol

$23.98

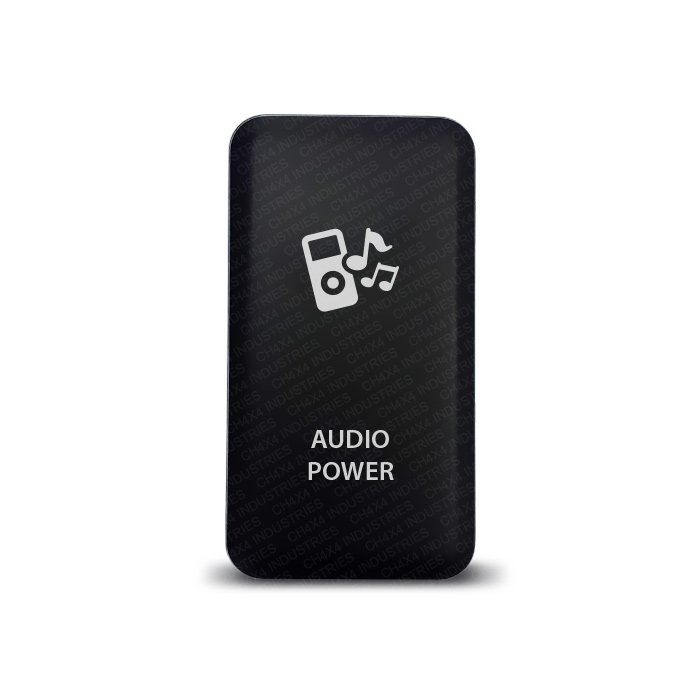

Recognize your push switch for Toyota audio power by its portable-player icon, music notes and AUDIO POWER label. Add an ON/OFF button to a properly designed relay circuit for your sound system; volume, playback and source selection remain with the audio equipment. The face measures 39 × 21 mm and includes two LEDs.

Install with a properly fused relay in ALL cases; accessory power must not run directly through the 3A, 12V switch. Relay sold separately; check the dashboard opening before ordering.

Switch LED Color

Clear

Description
Additional information

Keep your audio-system power control easy to identify with this push switch for Toyota audio power. The portable-player and music-note illustration above AUDIO POWER lettering separates this design from the stereo-style Symbol 2 version.

Audio Power Symbol: design and use

Use the button for a compatible audio power-enable arrangement designed around an appropriately fused relay. It is an ON/OFF control, not a volume adjustment, source selector or playback button. Check the audio equipment’s power and remote-control requirements before installation; do not route amplifier supply current or speaker signals through the switch.

push switch for Toyota audio power: Large Push specifications

Large Push face size: 39 × 21 mm, approximately 1.54 × 0.83 inches. This is not the cutout measurement.
Latching SPST ON/OFF operation holds its state after release; a second press switches it OFF.
3A, 12V electronic switch with short circuit protection. Use a properly fused external relay.
Matte black hard surface in heavy-duty ABS for a factory-style dashboard appearance.
Audio Power Symbol laser etched directly into the switch face.
Two LEDs: one upper ON indicator and one lower panel light.
Upper LED lights when the button is pressed IN.
Lower LED can be connected to a separate dashboard illumination circuit.

Wiring and installation — fused relay required

Install with a properly fused relay in ALL cases; accessory power must not run directly through the 3A, 12V switch.

To wire the push switch for Toyota audio power, plan the relay circuit around the connected equipment and follow its manufacturer’s instructions alongside the supplied switch diagram. The included connector and cable are for the switch side, not a complete power harness. Ask your installer to verify fuse protection and the ratings of the relay and wiring.

The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately.

What is included

1 CH4X4 push switch for Toyota audio power — Audio Power Symbol, Large Push ON/OFF version.
1 connector with cable.
Wiring diagram.

Product SKU: CH4X4-TOY-AUDPW. Relay and controlled equipment sold separately.

Compatible Toyota mounting applications

Confirm the model year, trim, market and actual dashboard opening before ordering, including the position restrictions below. Dashboard fitment does not establish electrical compatibility with the equipment being controlled. This is a CH4X4 aftermarket product for compatible Toyota applications.

Toyota FJ Cruiser 2007-2014
Toyota Fortuner 2005-2014
Toyota Hilux 2005-2014
Toyota Tacoma 2005-2011
Toyota Tacoma 2012-2014 (Left Side ONLY)
Toyota Highlander 2001-2007
Toyota Tundra 2005-2006 (Center Console if equipped)
Toyota 4Runner 2003-2009
Toyota Prado 120 Series 2003-2009
Toyota Land Cruiser 100 Series 1998-2007
Toyota Land Cruiser 75, 76, 78 & 79 series

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4X4 Push Switch for Toyota – Audio Power Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
