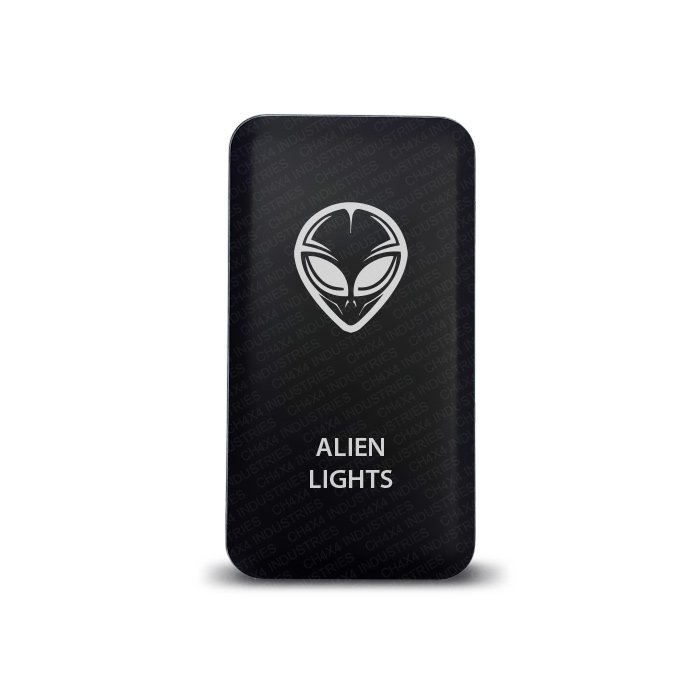

Add an alien-themed detail to an accessory panel with this push switch for Toyota alien lights. An outlined alien face above ALIEN LIGHTS lettering gives this Large Push design its distinctive appearance while the button supplies conventional latching ON/OFF control.
Alien Lights Symbol: design and use
The alien artwork is a decorative way to identify an auxiliary-light circuit. It does not select a lighting color, beam pattern or special operating mode. Match the circuit label to the lights you intend to control and choose the switch LED option separately from the color of the external lamps.
push switch for Toyota alien lights: Large Push specifications
- Face measures 39 × 21 mm (approximately 1.54 × 0.83 inches); check the mounting opening separately.
- Single Pole Single Throw (SPST), maintained ON/OFF: press in for ON and press again for OFF.
- Electronic switch rated at 3A at 12V, with short circuit protection; an external fused relay is required.
- Heavy-duty ABS body with a hard matte black face and an OEM-style factory look.
- Alien Lights Symbol laser etched directly into the switch face.
- Two LEDs: one upper ON indicator and one lower panel light.
- Upper LED lights when the button is pressed IN.
- Lower LED can be connected to a separate dashboard illumination circuit.
Wiring and installation — fused relay required
Every installation requires a fused relay. This 3A, 12V switch must not carry the accessory load directly.
For this push switch for Toyota alien lights, use the included wiring diagram for the switch connections and follow the connected equipment’s installation instructions. Relay, wire and fuse ratings must suit the accessory load. The supplied cable and connector connect the switch; additional power wiring is required for the equipment.
The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately.
What is included
- 1 CH4X4 push switch for Toyota alien lights — Alien Lights Symbol, Large Push ON/OFF version.
- 1 connector with cable.
- Wiring diagram.
Product SKU: CH4X4-TOY-ALIL. Relay and controlled equipment sold separately.
Compatible Toyota mounting applications
Confirm the model year, trim, market and actual dashboard opening before ordering, including the position restrictions below. Dashboard fitment does not establish electrical compatibility with the equipment being controlled. This is a CH4X4 aftermarket product for compatible Toyota applications.
- Toyota FJ Cruiser 2007-2014
- Toyota Fortuner 2005-2014
- Toyota Hilux 2005-2014
- Toyota Tacoma 2005-2011
- Toyota Tacoma 2012-2014 (Left Side ONLY)
- Toyota Highlander 2001-2007
- Toyota Tundra 2005-2006 (Center Console if equipped)
- Toyota 4Runner 2003-2009
- Toyota Prado 120 Series 2003-2009
- Toyota Land Cruiser 100 Series 1998-2007
- Toyota Land Cruiser 75, 76, 78 & 79 series
