Organize your winch control panel with the CH4X4 Winch IN-OUT Symbol pair. This momentary push switch for Toyota winch applications provides two separate, laser-etched Large Push buttons for a compatible control system, keeping the IN and OUT positions visibly identified.
Winch IN-OUT Symbol: check the winch control circuit first
Each button is a momentary SPST ON/OFF switch: press and hold to close its circuit, then release to open it. The pair must be integrated according to the winch manufacturer’s control requirements. These 3A switches cannot carry winch motor current and do not replace the winch’s power contactor or control system.
Package contents

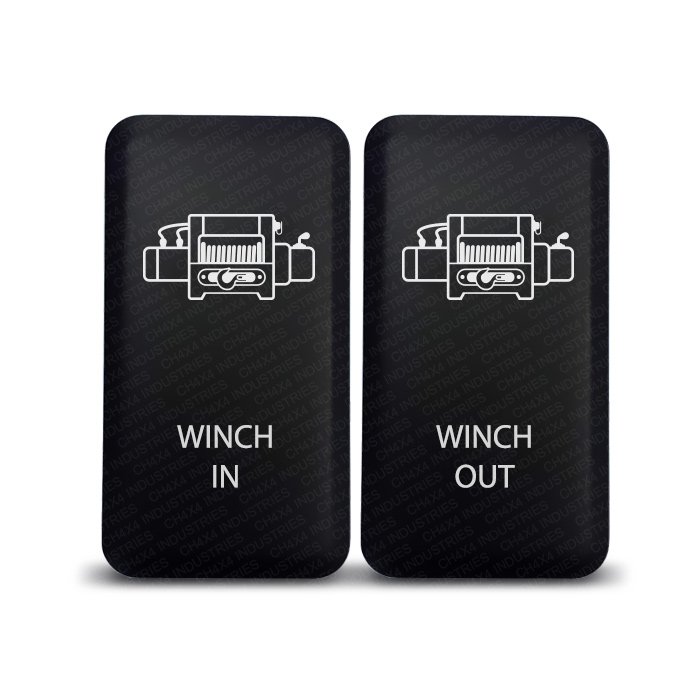

- 2 CH4X4 Large Push momentary switches — Winch IN-OUT Symbol.
- 2 connectors with cable.
- Wiring diagram supplied with the switches.
Relay and controlled equipment sold separately.
Momentary push switch for Toyota winch: Large Push specifications
- Face dimensions: 39 × 21 mm (approximately 1.54 × 0.83 inches). Verify the mounting opening separately.
- Single Pole Single Throw (SPST), momentary ON/OFF operation: press and hold for ON; release for OFF.
- Electronic switch rated at 3A at 12V, with short circuit protection.
- Heavy-duty ABS body with a matte black hard surface.
- Winch IN-OUT Symbol legend laser etched directly into the face.
- Two LEDs per switch: one upper indicator and one lower panel light.
- Upper LED turns ON when the switch is pressed IN.
- Lower LED can be wired to a separate dash-light circuit.
Wiring and installation — fused relay required
A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch. Route accessory power through a suitably rated relay circuit with appropriate fuse protection.
Follow the supplied wiring diagram and the accessory manufacturer’s instructions. The connector and cable provide the switch-side connection. The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately. Have your installer confirm relay, wiring and fuse selection for the accessory load.
Planning your Winch IN-OUT Symbol installation
Before choosing a mounting location, check both dash openings against the Large Push face format and the vehicle list below. The two switches need separate mounting positions. Have the installer verify the directional-control arrangement and any required interlocking against the winch documentation; the IN-OUT artwork does not establish wiring compatibility.
Compatible with Toyota mounting applications
Check the vehicle year, trim, market and actual dash opening. Observe the mounting-position restrictions below. This CH4X4 aftermarket switch is designed for the listed Toyota applications.
- Toyota Tacoma 2005–2011
- Toyota Tacoma 2012–2015 (left side ONLY)
- Toyota Tacoma 2016–2020 (left side ONLY)
- Toyota FJ Cruiser 2007–2014
- Toyota Fortuner 2005–2014
- Toyota Hilux 2005–2014
- Toyota Highlander 2001–2007
- Toyota Tundra 2005–2006 (center console, if equipped)
- Toyota 4Runner 2003–2009
- Toyota Prado 120 Series 2003–2009
- Toyota Land Cruiser 100 Series 1998–2007
- Toyota Land Cruiser 75, 76, 78 and 79 Series
