CH4X4 Square Push Switch for Toyota – Fog Lights

$23.98

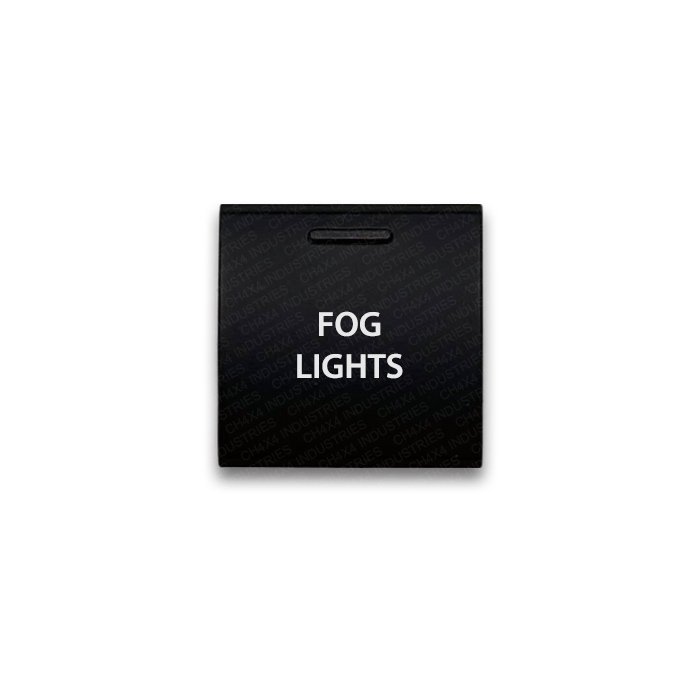

CH4X4 Square Push Switch for Toyota – Fog Lights brings a clean, integrated control to aftermarket fog lighting installations. The compact 22 × 22 mm switch features a permanent laser-etched FOG LIGHTS legend and dual LED illumination designed to complement a factory-style dashboard.

Offered with Amber, Blue or White LEDs. Maintained ON/OFF operation, rated at 3A at 12V.

Switch LED Color

Clear

Description
Additional information

Give your aftermarket fog lights a dashboard control that looks right at home with the CH4X4 Square Push Switch for Toyota – Fog Lights. Its 22 × 22 mm square profile fits compatible switch openings while the precision laser-etched FOG LIGHTS marking provides clear identification that will not peel or wear away like a decal. Dual LED illumination is offered in Amber, Blue or White, allowing you to select the color that best suits your interior lighting setup.

Switch features

Fog Lights legend permanently laser-etched directly into the switch face.
22 × 22 mm (0.86 × 0.86 in) square face; verify the dash opening before ordering.
SPST maintained ON/OFF operation: press to switch on, press again to switch off. This is not a momentary switch.
Heavy-duty ABS construction with a matte black finish.
Dual LEDs with a choice of Amber, Blue or White illumination.
The upper LED illuminates when the switch is pressed in; the lower LED can be wired to a separate dash-light circuit.
Rated at 3A at 12V for accessory control.

Wiring and installation

A fused relay is required in all installations. Do not power the accessory directly through this switch. Use the supplied wiring diagram and confirm compatibility with the accessory control circuit before connecting it.

The connector and wiring pigtail provide the switch-side connection; they are not a complete accessory wiring harness. A suitable 12V relay with 4-pin harness is available separately. Have a qualified installer check wiring, fuse protection and relay selection if needed.

What is included

1 CH4X4 Square Push Switch for Toyota – Fog Lights
1 connector with wiring pigtail.
Wiring diagram.

Vehicle fitment

Listed applications below are subject to the vehicle’s dash opening, trim and market. This aftermarket switch is not a Toyota OEM part; compare the opening and connector requirements before installation.

Toyota Tundra 2022 – On
Toyota Sequoia 2022 – On
Toyota Tacoma 2024 – On
Toyota 4Runner 2025 – On
Toyota Land Cruiser 300 Series 2022 – On
Toyota Prado 150 Series 08/2017 – 2023
Toyota Prado 250 Series 2024 – On
Toyota Rav4 & Rav4 Hybrid 01/2019 – On
Toyota Camry 70 Series 09/2017 – On
Toyota Hiace 02/2019 – On
Toyota Corolla 06/2018 – On

Weight	2 oz
Dimensions	5 × 5 × 3 in
Switch Format	Square Push
Switch Operation	ON/OFF
LED Color	Amber, Blue, White
Electrical Rating	3A at 12V
Switch Face Size	22 × 22 mm
Vehicle Compatibility	See vehicle list in Description

Built For Real-World Use

Every CH4X4 Square Push Switch for Toyota – Fog Lights is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
