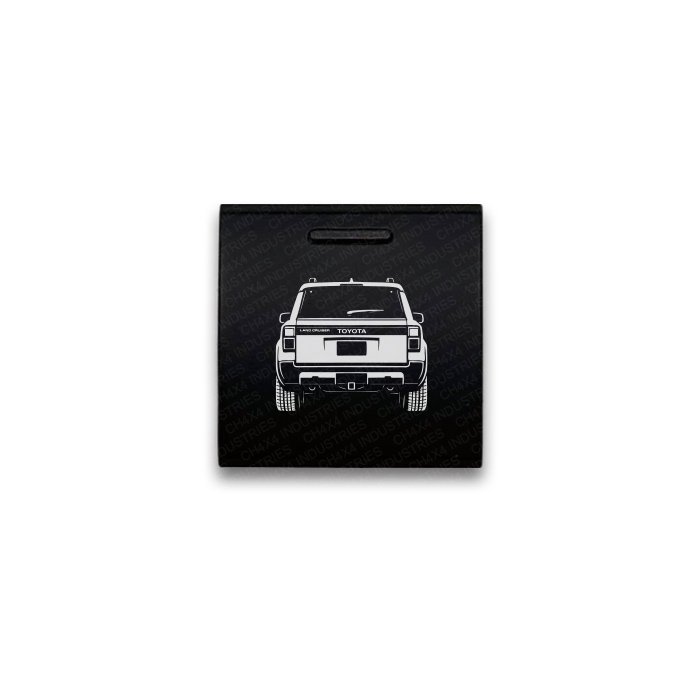

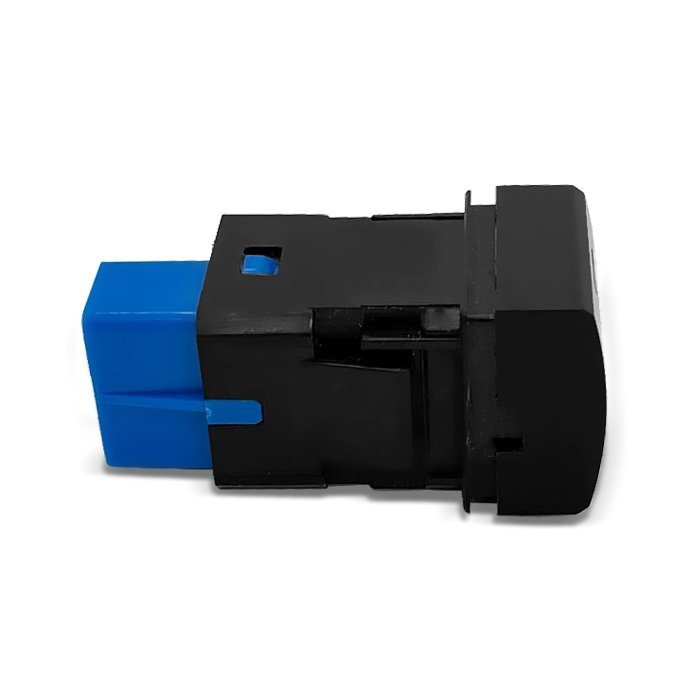

The CH4X4 2025 Land Cruiser rear symbol switch combines a laser-etched Land Cruiser rear design with an OEM-style square face. Use it to control compatible relay-operated rear lighting from a Toyota dash switch location.
Switch features
- SPST ON/OFF switch for a maintained on or off position.
- 22 × 22 mm (0.86 × 0.86 in) face.
- Matte black ABS body with a laser-etched symbol.
- Dual LED illumination; choose Amber, Blue or White.
- Upper LED indicates the ON position. Lower LED can be wired separately to the dash illumination circuit.
- Rated at 3A, 12V.
Wiring and installation
Rated at 3A, 12V. Accessories must be wired through a fused relay. Use the supplied wiring diagram and do not power high-current accessories directly through this switch. See the CH4X4 relay with 5-pin harness for relay specifications.
What is included
- One Land Cruiser rear symbol square push switch.

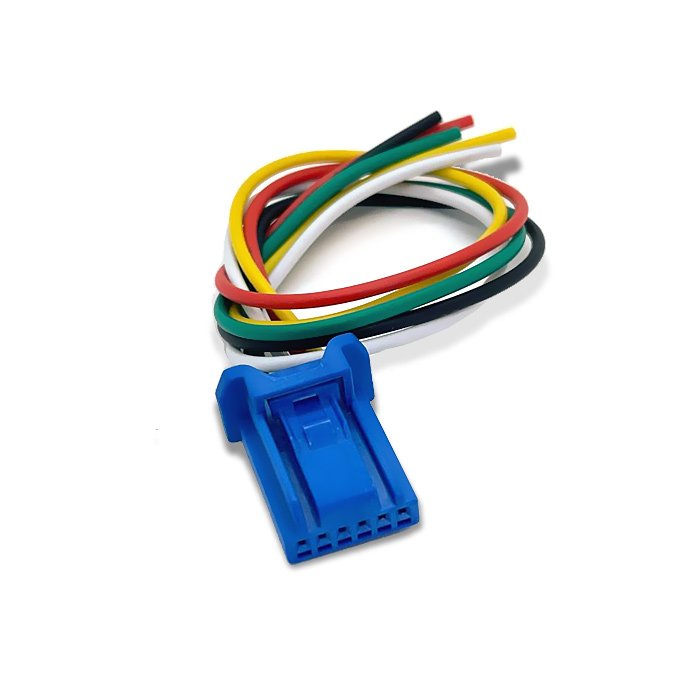

- One connector with wiring pigtail.

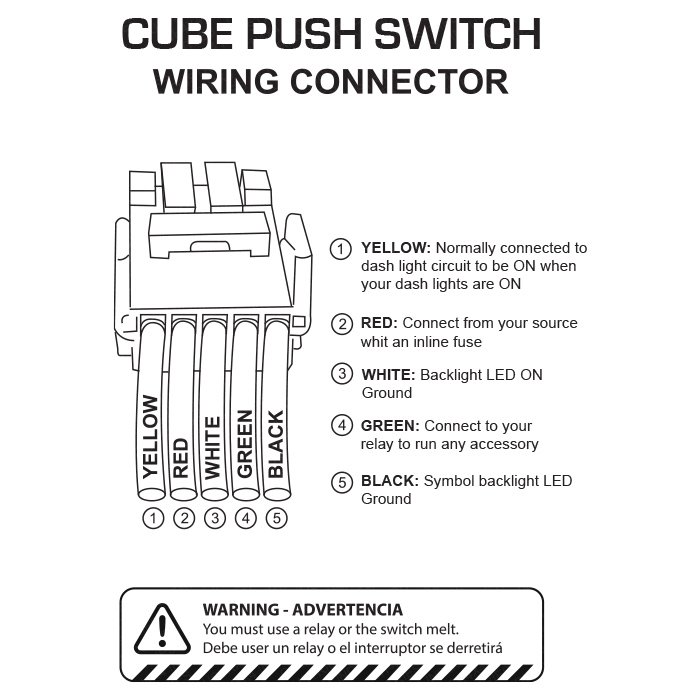

- Wiring diagram.
Vehicle fitment
Designed for compatible Toyota square dash switch openings. Confirm your vehicle’s switch opening and wiring before ordering; the 22 × 22 mm measurement is the switch face size.
- Toyota Tundra: 2022+
- Toyota Sequoia: 2022+
- Toyota Tacoma: 2024+
- Toyota 4Runner: 2025+
- Toyota Land Cruiser 300 Series: 2022+
- Toyota Prado 150 Series: August 2017–2023
- Toyota Land Cruiser / Prado 250 Series: 2024+
- Toyota RAV4 and RAV4 Hybrid: January 2019+
- Toyota Camry 70 Series: September 2017+
- Toyota Hiace: February 2019+
- Toyota Corolla: June 2018+
