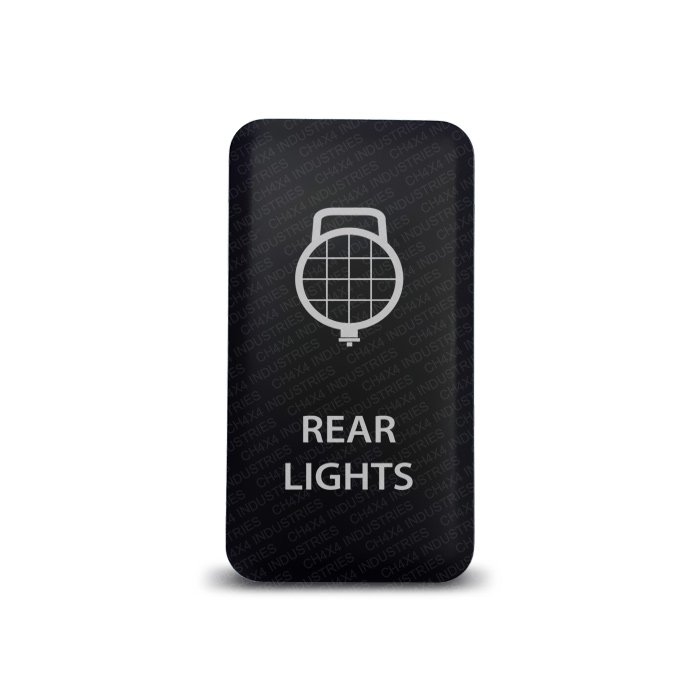

Make a rear-facing work-light circuit recognizable at the dashboard with this CH4X4 Toyota rear work light switch. The engraved face features a round lamp with a gridded lens above REAR LIGHTS lettering.
Rear Lights Symbol: design and use
The round-lamp graphic is a useful alternative to the rectangular-light and decorative rear-light designs. Select it for the appearance of your control panel; it does not require a particular lamp shape, brand or quantity. Switching is manual and latching. Automatic activation from a reversing signal would require a separately designed and verified control arrangement.
Toyota rear work light switch: Large Push specifications
- Face size: 39 × 21 mm (approximately 1.54 × 0.83 inches). This is the face measurement; verify the mounting opening separately.
- Single Pole Single Throw (SPST), maintained ON/OFF operation: press in to switch ON and press again to switch OFF.
- Electronic switch rated at 3A at 12V, with short circuit protection. A fused relay remains mandatory.
- Heavy-duty ABS construction with a matte black hard surface and an OEM-style factory look.
- Rear Lights Symbol laser etched directly into the switch face.
- Two LEDs: one upper indicator and one lower panel light.
- The upper LED turns ON when the switch is pressed IN.
- The lower LED can be wired to a separate dash-light circuit.
Wiring and installation — fused relay required
A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch. Route accessory power through a suitably rated relay circuit with appropriate fuse protection.
Follow the supplied wiring diagram and the accessory manufacturer’s instructions. The connector and cable provide the switch-side connection, not a complete accessory power harness. The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately. Have your installer confirm relay, wiring and fuse selection for the connected equipment.
What is included
- 1 CH4X4 Large Push ON/OFF switch — Rear Lights Symbol.
- 1 connector with cable.
- Wiring diagram.
Product SKU: CH4X4-TOY-RELI. The relay and accessory being controlled are sold separately.
Compatible with Toyota mounting applications
Check the model year, trim, market and actual dash opening before ordering. Observe the mounting-position restrictions below. This is a CH4X4 aftermarket switch for Toyota applications, not a Toyota-manufactured part.
- Toyota Tacoma 2005–2011
- Toyota Tacoma 2012–2015 (left side ONLY)
- Toyota Tacoma 2016–2020 (left side ONLY)
- Toyota FJ Cruiser 2007–2014
- Toyota Fortuner 2005–2014
- Toyota Hilux 2005–2014
- Toyota Highlander 2001–2007
- Toyota Tundra 2005–2006 (center console, if equipped)
- Toyota 4Runner 2003–2009
- Toyota Prado 120 Series 2003–2009
- Toyota Land Cruiser 100 Series 1998–2007
- Toyota Land Cruiser 75, 76, 78 and 79 Series
