CH4X4 Push Switch for Toyota – Rear Lights Symbol 2

$23.98

Choose the paired rectangular-lamp illustration to label rear auxiliary lighting. This REAR LIGHTS Large Push design uses one latching ON/OFF circuit, a 39 × 21 mm matte black face and separate upper and lower LEDs.

A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch. Relay sold separately; verify the dash opening before ordering.

Switch LED Color

Clear

Description
Additional information

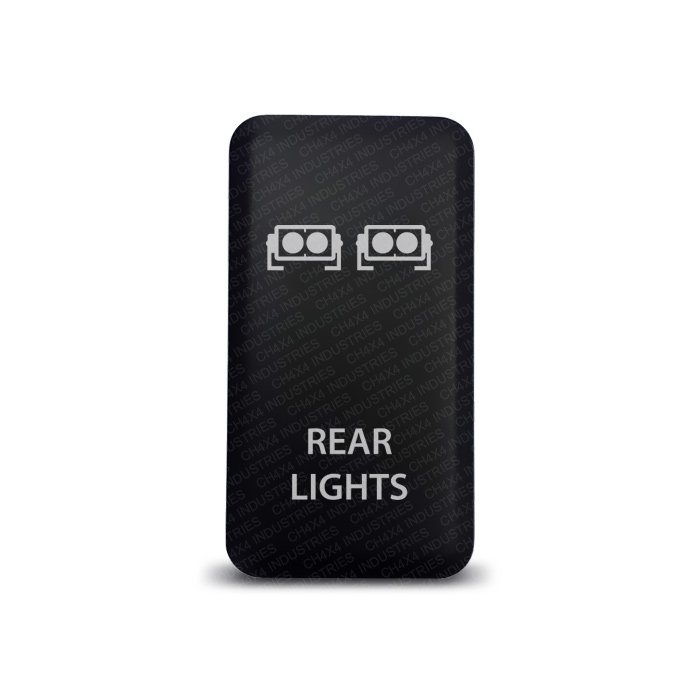

Identify rear auxiliary lighting with the paired rectangular-lamp artwork on this CH4X4 Toyota rear LED light switch. The REAR LIGHTS label and laser-etched graphic provide a different visual option from the round-lamp design.

Rear Lights Symbol 2: design and use

Each illustrated rectangular lamp contains two circular light elements. This is artwork, not a wiring specification: the button has one SPST ON/OFF circuit, not separate outputs for two lamps. Determine the total load of the connected lighting and select the relay, wiring and fuse accordingly. This switch provides manual control and does not detect reverse gear.

Toyota rear LED light switch: Large Push specifications

Face size: 39 × 21 mm (approximately 1.54 × 0.83 inches). This is the face measurement; verify the mounting opening separately.
Single Pole Single Throw (SPST), maintained ON/OFF operation: press in to switch ON and press again to switch OFF.
Electronic switch rated at 3A at 12V, with short circuit protection. A fused relay remains mandatory.
Heavy-duty ABS construction with a matte black hard surface and an OEM-style factory look.
Rear Lights Symbol 2 laser etched directly into the switch face.
Two LEDs: one upper indicator and one lower panel light.
The upper LED turns ON when the switch is pressed IN.
The lower LED can be wired to a separate dash-light circuit.

Wiring and installation — fused relay required

A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch. Route accessory power through a suitably rated relay circuit with appropriate fuse protection.

Follow the supplied wiring diagram and the accessory manufacturer’s instructions. The connector and cable provide the switch-side connection, not a complete accessory power harness. The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately. Have your installer confirm relay, wiring and fuse selection for the connected equipment.

What is included

1 CH4X4 Large Push ON/OFF switch — Rear Lights Symbol 2.
1 connector with cable.
Wiring diagram.

Product SKU: CH4X4-TOY-RELI2. The relay and accessory being controlled are sold separately.

Compatible with Toyota mounting applications

Check the model year, trim, market and actual dash opening before ordering. Observe the mounting-position restrictions below. This is a CH4X4 aftermarket switch for Toyota applications, not a Toyota-manufactured part.

Toyota Tacoma 2005–2011
Toyota Tacoma 2012–2015 (left side ONLY)
Toyota Tacoma 2016–2020 (left side ONLY)
Toyota FJ Cruiser 2007–2014
Toyota Fortuner 2005–2014
Toyota Hilux 2005–2014
Toyota Highlander 2001–2007
Toyota Tundra 2005–2006 (center console, if equipped)
Toyota 4Runner 2003–2009
Toyota Prado 120 Series 2003–2009
Toyota Land Cruiser 100 Series 1998–2007
Toyota Land Cruiser 75, 76, 78 and 79 Series

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Push
Function	On-Off
Controls	Rear Light
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4X4 Push Switch for Toyota – Rear Lights Symbol 2 is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
