Select the CH4X4 push switch for Toyota FJ Cruiser bumper lights symbol when this particular engraved design matches your panel. SKU CH4X4-TOY-FJCSBL2 identifies this Bumper Lights Symbol option, keeping it distinct from the other artwork sold under the same function name.
Bumper Lights Symbol — CH4X4-TOY-FJCSBL2

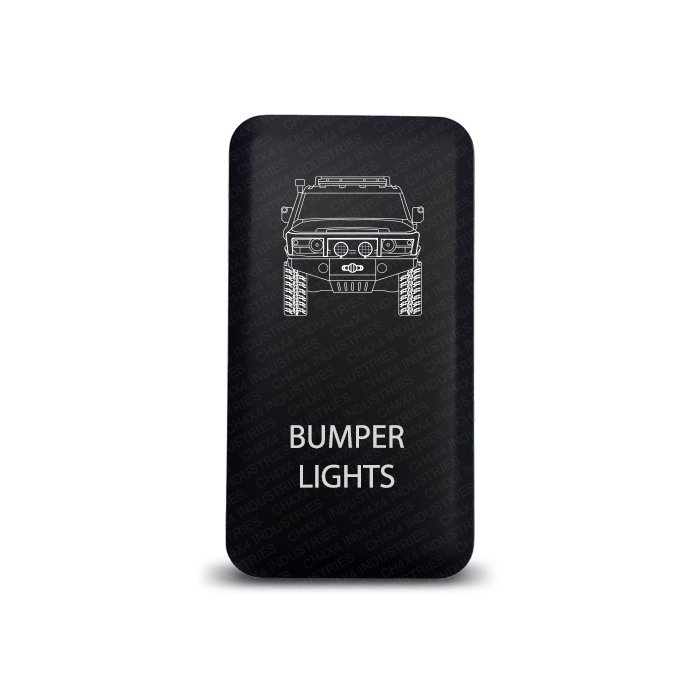

Start with the product image when comparing the two bumper-light designs. This option changes the graphic selection, while retaining the same SPST latching action and Large Push dimensions. It gives a bumper-light control an identifiable position without requiring the label to define a particular lamp brand or quantity.
Push switch for Toyota FJ Cruiser bumper lights symbol: specifications
- Face size: 39 × 21 mm (approximately 1.54 × 0.83 inches). Verify the actual mounting opening separately.
- Single Pole Single Throw (SPST), latching ON/OFF operation: press once for ON and again for OFF.
- Electronic switch rated at 3A at 12V, with short circuit protection.
- Heavy-duty ABS construction and a matte black hard surface for an OEM-style appearance.
- Bumper Lights Symbol with FJ Cruiser artwork, laser etched directly into the face.
- Two LEDs: one upper indicator and one lower panel light.
- Upper LED turns ON when the switch is pressed IN.
- Lower LED can be wired to a separate dash-light circuit.
Graphic choice and vehicle compatibility
This FJ Cruiser-themed design is especially suited to an FJ Cruiser dashboard, but the graphic does not restrict installation to that model. Its construction, electrical rating and fitment are the same as the regular Large Push series. Use the complete compatibility list below when checking another vehicle.
Wiring and installation — fused relay required
A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch. Route accessory power through a suitably rated relay circuit with appropriate fuse protection.
Follow the supplied wiring diagram and the accessory manufacturer’s instructions. The connector and cable provide the switch-side connection. The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately. Have your installer confirm relay, wiring and fuse selection for the accessory load.
Included with Bumper Lights Symbol
- 1 CH4X4 Large Push latching ON/OFF switch.
- 1 connector with cable.
- Wiring diagram supplied with the switch.
Lighting equipment and relay are sold separately. Follow the switch diagram and the accessory manufacturer’s instructions during installation.
Compatible with Toyota vehicles
Check the model year, trim, market and actual dash opening before ordering. Observe the position restrictions shown for Tacoma and Tundra. This is a CH4X4 aftermarket product for Toyota applications.
- Toyota Tacoma 2005–2011
- Toyota Tacoma 2012–2015 (left side ONLY)
- Toyota Tacoma 2016–2020 (left side ONLY)
- Toyota FJ Cruiser 2007–2014
- Toyota Fortuner 2005–2014
- Toyota Hilux 2005–2014
- Toyota Highlander 2001–2007
- Toyota Tundra 2005–2006 (center console, if equipped)
- Toyota 4Runner 2003–2009
- Toyota Prado 120 Series 2003–2009
- Toyota Land Cruiser 100 Series 1998–2007
- Toyota Land Cruiser 75, 76, 78 and 79 Series
