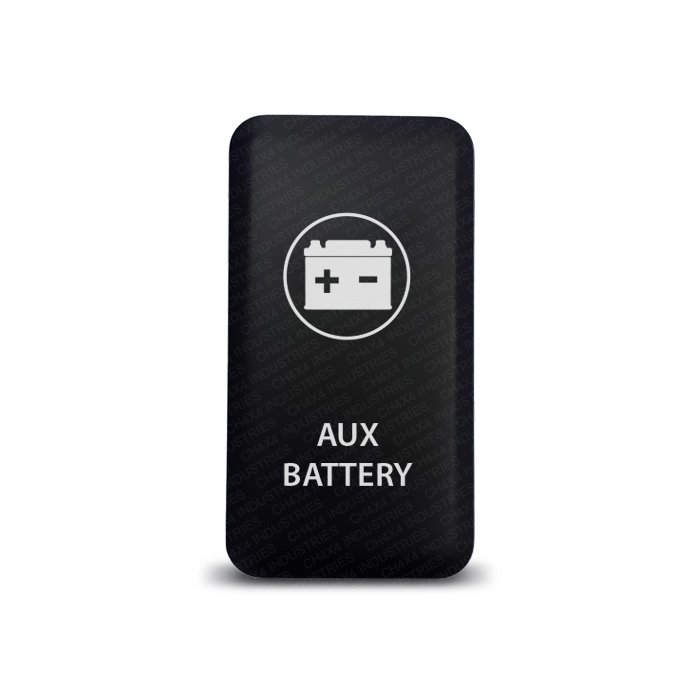

An AUX BATTERY label and a battery icon with plus and minus markings make this push switch for Toyota auxiliary battery easy to recognize beside other accessory controls. The illuminated Large Push button provides a labeled control point for a compatible auxiliary-battery system.
Auxiliary Battery Symbol: design and use
Treat this product as a low-current control switch, not as a battery isolator, charging controller or high-current disconnect. A qualified installer must match it to the auxiliary system’s approved control input and a suitably fused relay arrangement. Battery charging, combining and load isolation require their own correctly rated equipment; the face label does not provide those functions.
push switch for Toyota auxiliary battery: Large Push specifications
- Large Push face size: 39 × 21 mm, approximately 1.54 × 0.83 inches. This is not the cutout measurement.
- Latching SPST ON/OFF operation holds its state after release; a second press switches it OFF.
- 3A, 12V electronic switch with short circuit protection. Use a properly fused external relay.
- Matte black hard surface in heavy-duty ABS for a factory-style dashboard appearance.
- Auxiliary Battery Symbol laser etched directly into the switch face.
- Two LEDs: one upper ON indicator and one lower panel light.
- Upper LED lights when the button is pressed IN.
- Lower LED can be connected to a separate dashboard illumination circuit.
Wiring and installation — fused relay required
Every installation requires a fused relay. This 3A, 12V switch must not carry the accessory load directly.
For this push switch for Toyota auxiliary battery, use the included wiring diagram for the switch connections and follow the connected equipment’s installation instructions. Relay, wire and fuse ratings must suit the accessory load. The supplied cable and connector connect the switch; additional power wiring is required for the equipment.
The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately.
What is included
- 1 CH4X4 push switch for Toyota auxiliary battery — Auxiliary Battery Symbol, Large Push ON/OFF version.
- 1 connector with cable.
- Wiring diagram.
Product SKU: CH4X4-TOY-AUXB. Relay and controlled equipment sold separately.
Compatible Toyota mounting applications
Confirm the model year, trim, market and actual dashboard opening before ordering, including the position restrictions below. Dashboard fitment does not establish electrical compatibility with the equipment being controlled. This is a CH4X4 aftermarket product for compatible Toyota applications.
- Toyota FJ Cruiser 2007-2014
- Toyota Fortuner 2005-2014
- Toyota Hilux 2005-2014
- Toyota Tacoma 2005-2011
- Toyota Tacoma 2012-2014 (Left Side ONLY)
- Toyota Highlander 2001-2007
- Toyota Tundra 2005-2006 (Center Console if equipped)
- Toyota 4Runner 2003-2009
- Toyota Prado 120 Series 2003-2009
- Toyota Land Cruiser 100 Series 1998-2007
- Toyota Land Cruiser 75, 76, 78 & 79 series
