CH4X4 Push Switch for Toyota – Air Compressor Symbol 3

$23.98

Choose this push switch for Toyota air compressor symbol 3 for the piston-style illustration and full AIR COMPRESSOR label of Symbol 3. Its latching action provides ON/OFF control through an appropriate relay, with compressor pressure regulation handled by the air system. The face measures 39 × 21 mm and includes two LEDs.

A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch. Relay sold separately; check the dashboard opening before ordering.

Switch LED Color

Clear

Description
Additional information

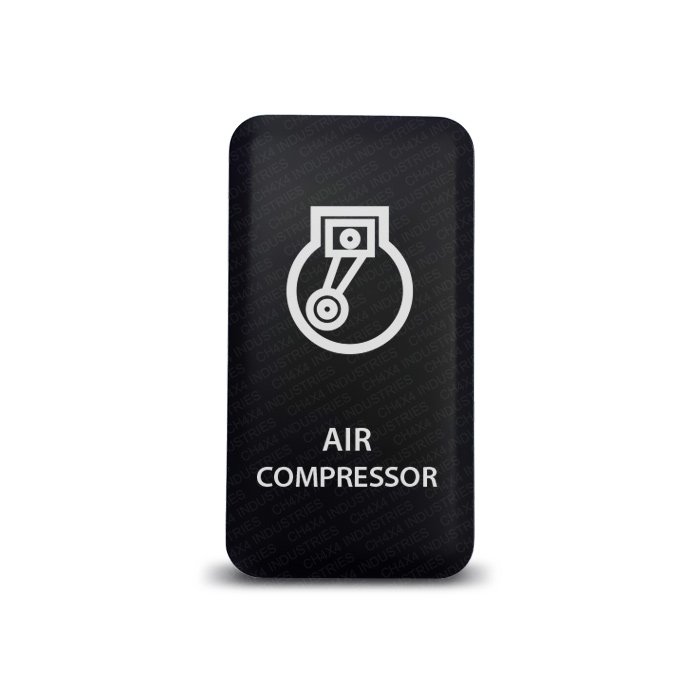

A piston-and-crank illustration distinguishes this push switch for Toyota air compressor symbol 3 from the tank-style designs. The AIR COMPRESSOR wording below the icon gives Air Compressor Symbol 3 a clear role on your accessory panel.

Air Compressor Symbol 3: design and use

Choose Symbol 3 when you prefer the mechanical compressor illustration and the full AIR COMPRESSOR label. The button operates a compatible relay control circuit; it does not set air pressure or replace a pressure switch. Keep all protection and control components required by the compressor manufacturer, and route motor power through the properly rated relay circuit.

push switch for Toyota air compressor symbol 3: Large Push specifications

Large Push face size: 39 × 21 mm, approximately 1.54 × 0.83 inches. This is not the cutout measurement.
Latching SPST ON/OFF operation holds its state after release; a second press switches it OFF.
3A, 12V electronic switch with short circuit protection. Use a properly fused external relay.
Matte black hard surface in heavy-duty ABS for a factory-style dashboard appearance.
Air Compressor Symbol 3 laser etched directly into the switch face.
Two LEDs: one upper ON indicator and one lower panel light.
Upper LED lights when the button is pressed IN.
Lower LED can be connected to a separate dashboard illumination circuit.

Wiring and installation — fused relay required

A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch.

When installing this push switch for Toyota air compressor symbol 3, follow the supplied wiring diagram together with the equipment manufacturer’s instructions. Have your installer select relay capacity, cable size and fuse protection for the actual load. The connector and cable provide the switch-side connection, not a complete accessory power harness.

The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately.

What is included

1 CH4X4 push switch for Toyota air compressor symbol 3 — Air Compressor Symbol 3, Large Push ON/OFF version.
1 connector with cable.
Wiring diagram.

Product SKU: CH4X4-TOY-ACOM3. Relay and controlled equipment sold separately.

Compatible Toyota mounting applications

Confirm the model year, trim, market and actual dashboard opening before ordering, including the position restrictions below. Dashboard fitment does not establish electrical compatibility with the equipment being controlled. This is a CH4X4 aftermarket product for compatible Toyota applications.

Toyota Tacoma 2005-2011
Toyota Tacoma 2012-2015 (Left Side ONLY)
Toyota Tacoma 2016 – 2020 (Left Side ONLY)
Toyota FJ Cruiser 2007-2014
Toyota Fortuner 2005-2014
Toyota Hilux 2005-2014
Toyota Highlander 2001-2007
Toyota Tundra 2005-2006 (Center Console if equipped)
Toyota 4Runner 2003-2009
Toyota Prado 120 Series 2003-2009
Toyota Land Cruiser 100 Series 1998-2007
Toyota Land Cruiser 75, 76, 78 & 79 series

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Push
Function	On-Off
Controls	Compressor
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4X4 Push Switch for Toyota – Air Compressor Symbol 3 is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
