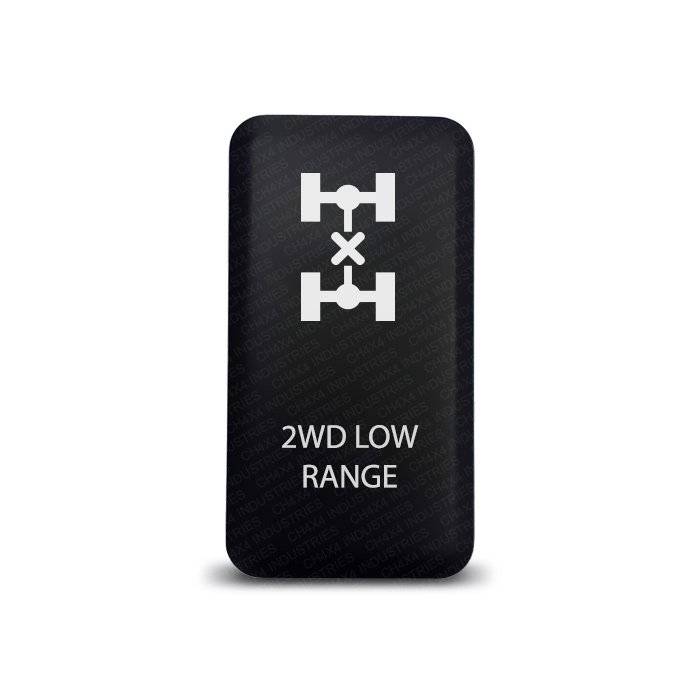

Label a separately engineered low-range control clearly with this push switch for Toyota 2WD low range. Its face pairs 2WD LOW RANGE lettering with a drivetrain symbol that has a central cross, making this version visually distinct from Symbol 2.
2WD Low Range Symbol: design and use
This is a labeled SPST control switch, not a transfer-case conversion kit. The engraving does not add a two-wheel-drive low-range mode or establish compatibility with a vehicle’s drivetrain electronics. Have a qualified installer verify the required switching logic and preserve the vehicle’s interlocks before choosing it for a control circuit.
push switch for Toyota 2WD low range: Large Push specifications
- Face measures 39 × 21 mm (approximately 1.54 × 0.83 inches); check the mounting opening separately.
- Single Pole Single Throw (SPST), maintained ON/OFF: press in for ON and press again for OFF.
- Electronic switch rated at 3A at 12V, with short circuit protection; an external fused relay is required.
- Heavy-duty ABS body with a hard matte black face and an OEM-style factory look.
- 2WD Low Range Symbol laser etched directly into the switch face.
- Two LEDs: one upper ON indicator and one lower panel light.
- Upper LED lights when the button is pressed IN.
- Lower LED can be connected to a separate dashboard illumination circuit.
Wiring and installation — fused relay required
A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch.
When installing this push switch for Toyota 2WD low range, follow the supplied wiring diagram together with the equipment manufacturer’s instructions. Have your installer select relay capacity, cable size and fuse protection for the actual load. The connector and cable provide the switch-side connection, not a complete accessory power harness.
The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately.
What is included
- 1 CH4X4 push switch for Toyota 2WD low range — 2WD Low Range Symbol, Large Push ON/OFF version.
- 1 connector with cable.
- Wiring diagram.
Product SKU: CH4X4-TOY-2WDLOW. Relay and controlled equipment sold separately.
Compatible Toyota mounting applications
Confirm the model year, trim, market and actual dashboard opening before ordering, including the position restrictions below. Dashboard fitment does not establish electrical compatibility with the equipment being controlled. This is a CH4X4 aftermarket product for compatible Toyota applications.
- Toyota Tacoma 2005-2011
- Toyota Tacoma 2012-2015 (Left Side ONLY)
- Toyota Tacoma 2016 – 2020 (Left Side ONLY)
- Toyota FJ Cruiser 2007-2014
- Toyota Fortuner 2005-2014
- Toyota Hilux 2005-2014
- Toyota Highlander 2001-2007
- Toyota Tundra 2005-2006 (Center Console if equipped)
- Toyota 4Runner 2003-2009
- Toyota Prado 120 Series 2003-2009
- Toyota Land Cruiser 100 Series 1998-2007
- Toyota Land Cruiser 75, 76, 78 & 79 series
