CH4X4 Push Switch for Toyota – 2WD Low Range Symbol 2

$23.98

The push switch for Toyota 2WD low range symbol 2 combines connected axle artwork with the 2WD LOW RANGE label. Use this latching button only for a separately verified control circuit; the face design does not add a drivetrain function or replace the factory controller. The face measures 39 × 21 mm and includes two LEDs.

Every installation requires a fused relay. This 3A, 12V switch must not carry the accessory load directly. Relay sold separately; check the dashboard opening before ordering.

Switch LED Color

Clear

Description
Additional information

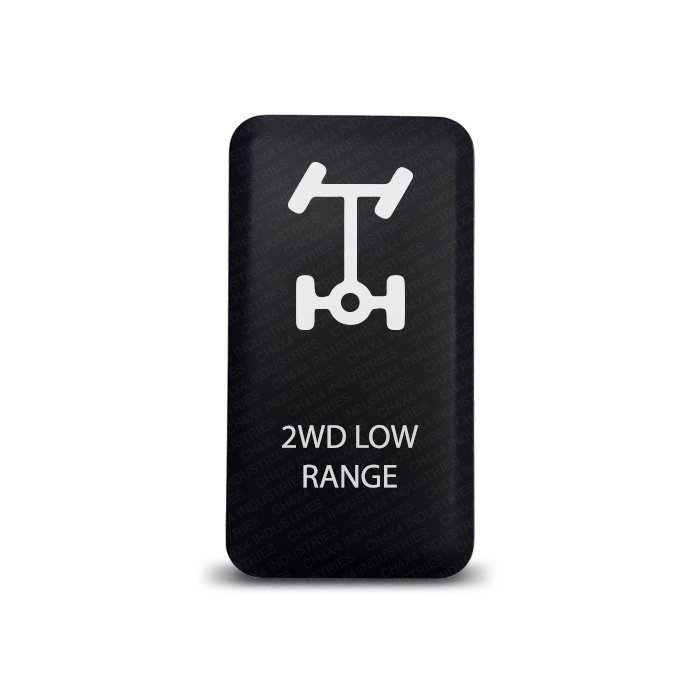

For a panel that uses a simplified drivetrain illustration, choose the push switch for Toyota 2WD low range symbol 2. The connected axle design sits above the two-line 2WD LOW RANGE label on a matte black face.

2WD Low Range Symbol 2: design and use

Symbol 2 offers a different face design from the drivetrain-and-cross version; it does not provide different switching modes. Use it only within a professionally verified control arrangement. A switch alone cannot enable a low-range conversion, replace a transfer-case controller or confirm compatibility with the factory drivetrain system.

push switch for Toyota 2WD low range symbol 2: Large Push specifications

Large Push face size: 39 × 21 mm, approximately 1.54 × 0.83 inches. This is not the cutout measurement.
Latching SPST ON/OFF operation holds its state after release; a second press switches it OFF.
3A, 12V electronic switch with short circuit protection. Use a properly fused external relay.
Matte black hard surface in heavy-duty ABS for a factory-style dashboard appearance.
2WD Low Range Symbol 2 laser etched directly into the switch face.
Two LEDs: one upper ON indicator and one lower panel light.
Upper LED lights when the button is pressed IN.
Lower LED can be connected to a separate dashboard illumination circuit.

Wiring and installation — fused relay required

Every installation requires a fused relay. This 3A, 12V switch must not carry the accessory load directly.

For this push switch for Toyota 2WD low range symbol 2, use the included wiring diagram for the switch connections and follow the connected equipment’s installation instructions. Relay, wire and fuse ratings must suit the accessory load. The supplied cable and connector connect the switch; additional power wiring is required for the equipment.

The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately.

What is included

1 CH4X4 push switch for Toyota 2WD low range symbol 2 — 2WD Low Range Symbol 2, Large Push ON/OFF version.
1 connector with cable.
Wiring diagram.

Product SKU: CH4X4-TOY-2WDLOW2. Relay and controlled equipment sold separately.

Compatible Toyota mounting applications

Confirm the model year, trim, market and actual dashboard opening before ordering, including the position restrictions below. Dashboard fitment does not establish electrical compatibility with the equipment being controlled. This is a CH4X4 aftermarket product for compatible Toyota applications.

Toyota Tacoma 2005-2011
Toyota Tacoma 2012-2015 (Left Side ONLY)
Toyota Tacoma 2016 – 2020 (Left Side ONLY)
Toyota FJ Cruiser 2007-2014
Toyota Fortuner 2005-2014
Toyota Hilux 2005-2014
Toyota Highlander 2001-2007
Toyota Tundra 2005-2006 (Center Console if equipped)
Toyota 4Runner 2003-2009
Toyota Prado 120 Series 2003-2009
Toyota Land Cruiser 100 Series 1998-2007
Toyota Land Cruiser 75, 76, 78 & 79 series

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4X4 Push Switch for Toyota – 2WD Low Range Symbol 2 is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
