CH4X4 momentary push switch for Toyota train horn – Train Horn Symbol, 39 × 21 mm Large Push

CH4X4 Momentary Push Switch for Toyota – Train Horn Symbol

$23.98

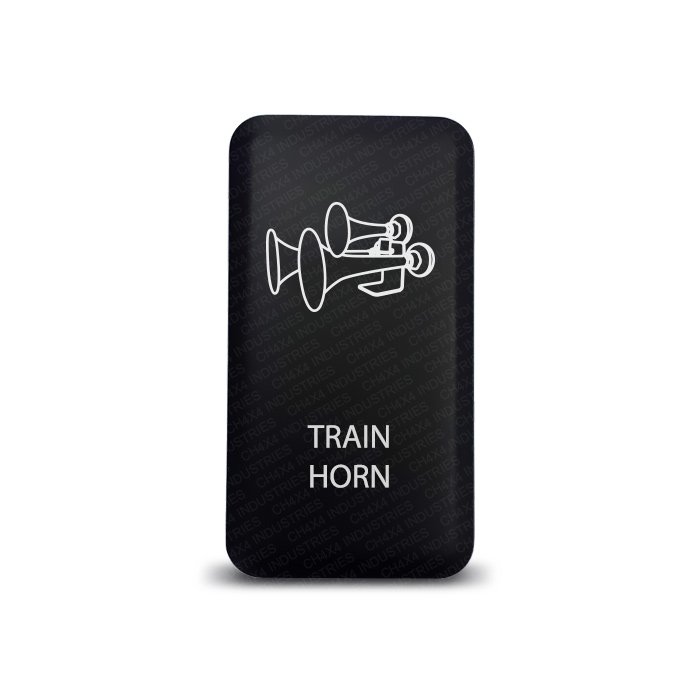

Mark your added horn control with the laser-etched Train Horn Symbol. This CH4X4 momentary push switch for Toyota train horn applications stays ON only while the button is held.

The matte black 39 × 21 mm face has two LEDs. Connector with cable included. A fused relay is required in ALL installations; the relay and horn equipment are sold separately.

Switch LED Color

Clear

Description
Additional information

Identify an added horn control with the CH4X4 Train Horn Symbol momentary push switch for Toyota train horn applications. The engraved legend distinguishes this control from other dashboard accessories, while the matte black face maintains a factory look in a suitable Large Push opening.

Train Horn Symbol: control the input, not the horn load

The button operates as a momentary SPST ON/OFF switch. Press and hold for ON, then release for OFF; it does not latch. Route the accessory load through a fused relay and confirm the horn system’s control requirements before installation. This switch is not a horn, compressor or air-control assembly.

Package contents

1 CH4X4 Large Push momentary switch — Train Horn Symbol.
1 connector with cable.
Wiring diagram supplied with the switch.

Relay and controlled equipment sold separately.

Momentary push switch for Toyota train horn: Large Push specifications

Face dimensions: 39 × 21 mm (approximately 1.54 × 0.83 inches). Verify the mounting opening separately.
Single Pole Single Throw (SPST), momentary ON/OFF operation: press and hold for ON; release for OFF.
Electronic switch rated at 3A at 12V, with short circuit protection.
Heavy-duty ABS body with a matte black hard surface.
Train Horn Symbol legend laser etched directly into the face.
Two LEDs per switch: one upper indicator and one lower panel light.
Upper LED turns ON when the switch is pressed IN.
Lower LED can be wired to a separate dash-light circuit.

Wiring and installation — fused relay required

A fused relay is required in ALL installations. Do not power the accessory directly through this 3A, 12V switch. Route accessory power through a suitably rated relay circuit with appropriate fuse protection.

Follow the supplied wiring diagram and the accessory manufacturer’s instructions. The connector and cable provide the switch-side connection. The CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately. Have your installer confirm relay, wiring and fuse selection for the accessory load.

Planning your Train Horn Symbol installation

Plan the switch location around the actual dashboard opening and the fitment restrictions below. The listed face size is 39 × 21 mm, which should not be treated as a panel-cutout specification. Match the connector wiring to the supplied diagram and have the installer check the separate horn system’s instructions.

Compatible with Toyota mounting applications

Check the vehicle year, trim, market and actual dash opening. Observe the mounting-position restrictions below. This CH4X4 aftermarket switch is designed for the listed Toyota applications.

Toyota Tacoma 2005–2011
Toyota Tacoma 2012–2015 (left side ONLY)
Toyota Tacoma 2016–2020 (left side ONLY)
Toyota FJ Cruiser 2007–2014
Toyota Fortuner 2005–2014
Toyota Hilux 2005–2014
Toyota Highlander 2001–2007
Toyota Tundra 2005–2006 (center console, if equipped)
Toyota 4Runner 2003–2009
Toyota Prado 120 Series 2003–2009
Toyota Land Cruiser 100 Series 1998–2007
Toyota Land Cruiser 75, 76, 78 and 79 Series

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	Momentary
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Push
Function	Momentary
Controls	Air Horn
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4X4 Momentary Push Switch for Toyota – Train Horn Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a Momentary switch — it only stays active while you hold it and springs back off, ideal for horns, winches, and anything you only want on for a moment.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
